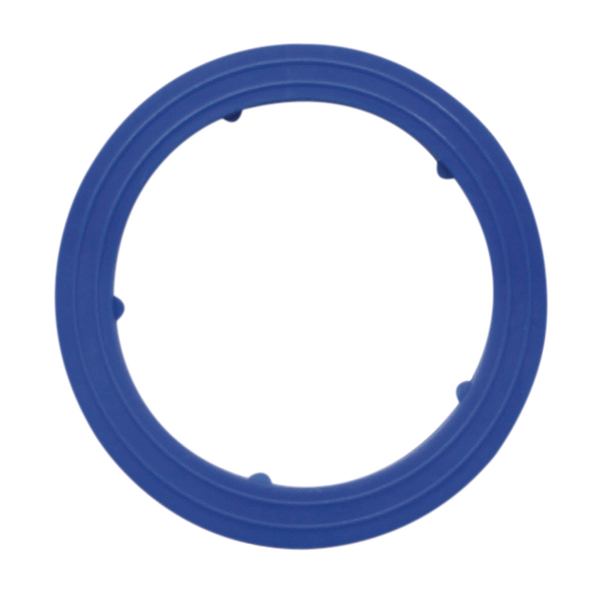

Accessory, HelaGuard®, blue, 10pcs. (RSW150)
Art.-No. 166-90451 | RSW150-TPE-BU

Polyester elastomer washer provides ingress protection against moisture and is oil resistant.
Small "pips" in bore retain washer onto metric threaded fittings.
Ribs on both sides of washer enhances sealing performance.

Brand Family	HelaGuard®
Color	Blue (BU)
Description	Face sealing washer affixed between metric threaded fitting and entry wall surface to achieve IP66, IP67, IP68 and IP69 levels of ingress protection. Hardness 33 Shore D. Self-extinguishing and halogen free.
PART DESCRIPTION	RSW150-TPE-BU
Packaging Type	pack
Part No.	166-90451
Short Desc.	HelaGuard® Accessories, Sealing Washer, M50-1.5", Polyester Elastomer, Blue, 10/pkg
Technical Description	Manufacturer Reference Number: RSW50-BU
Type	RSW150
UV Resistant	No

Inner Diameter (imperial)	1.97"
Inner Diameter 2 (metric)	50.0mm
Max. Bundle Diameter (imperial)	0"
Min. Bundle Diameter (imperial)	0"
Nominal Diameter (imperial)	2"
Nominal Diameter (metric)	50mm
Outside Diameter (imperial)	2.44"
Outside Diameter (metric)	62.0mm
Thickness (imperial)	0.07"
Thickness (metric)	1.8mm
Trade Size	2 "
