22/02/2026

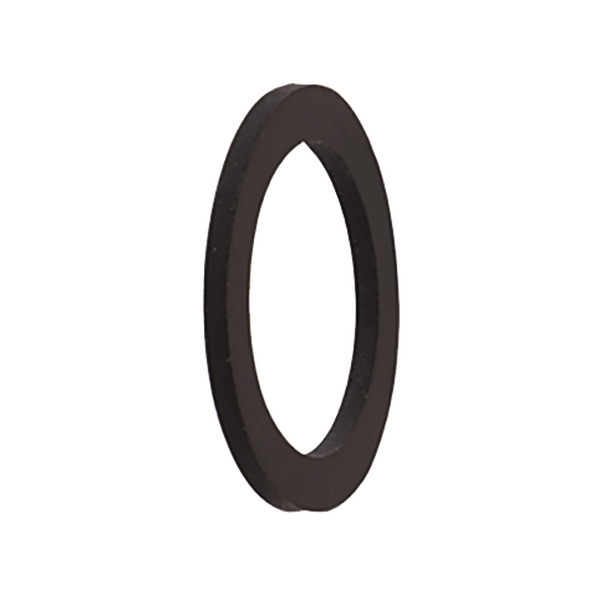

Accessory, HelaGuard®, black, 10pcs. (SW0380)
Art.-No. 166-90480 | SW0380-CR-BK

Copied
Oil resistant ring protects against water and dust infiltration.

    • Protects against water and dust.
    • 80 Shore A compression strength.
    • For NPT threads.
    • Resistant to oil.
    Add to watchlist
    Downloads
    Brand Family HelaGuard®
    Color Black (BK)
    Description Chloroprene rubber sealing washer for use with non-metallic threaded fittings.
    PART DESCRIPTION SW0380-CR-BK
    Packaging Type pack
    Part No. 166-90480
    Short Desc. HelaGuard® 3/8" Rubber Sealing Washer, Chloroprene Rubber, Black, 10 pcs/pkg
    Type SW0380
    UV Resistant No
    Nominal Diameter (imperial) 0.38"
    Nominal Diameter (metric) 16mm
    Outside Diameter (imperial) 0.95"
    Outside Diameter (metric) 24mm
    Trade Size 3/8 "
    Material CR
    Material Chloroprene Rubber (CR)
    Operating Temperature -40°F to +275°F (-40°C to +135°C)
    Pkg. Qty. 10Pieces
    Pkg. Qty. 10
