Accessory, HelaGuard®, black, 10pcs. (SW2000)
Art.-No. 166-90486 | SW2000-CR-BK

Copied
Oil resistant ring protects against water and dust infiltration.

    • Protects against water and dust.
    • 80 Shore A compression strength.
    • For NPT threads.
    • Resistant to oil.
    Add to watchlist
    Downloads
    Brand Family HelaGuard®
    Color Black (BK)

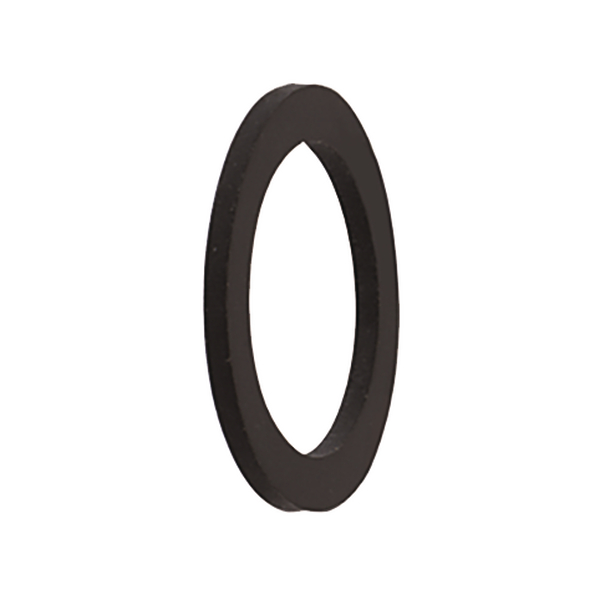

    Description Chloroprene rubber sealing washer for use with non-metallic threaded fittings.
    PART DESCRIPTION SW2000-CR-BK
    Packaging Type pack
    Part No. 166-90486
    Short Desc. HelaGuard® 2" Rubber Sealing Washer, Chloroprene Rubber, Black, 10 pcs/pkg
    Type SW2000
    UV Resistant No
    Nominal Diameter (imperial) 2.63"
    Nominal Diameter (metric) 67mm
    Outside Diameter (imperial) 2.76"
    Outside Diameter (metric) 70mm
    Material CR
    Material Chloroprene Rubber (CR)
    Operating Temperature -40°F to +275°F (-40°C to +135°C)
    Pkg. Qty. 10Pieces
    Pkg. Qty. 10
