MRBU 30 Pair Closure


Art.-No. 857-10051

| MRBTB-AXXFXXX

 |

Copied
MRBU showing 4 port base
MRBU Closure Dimensions

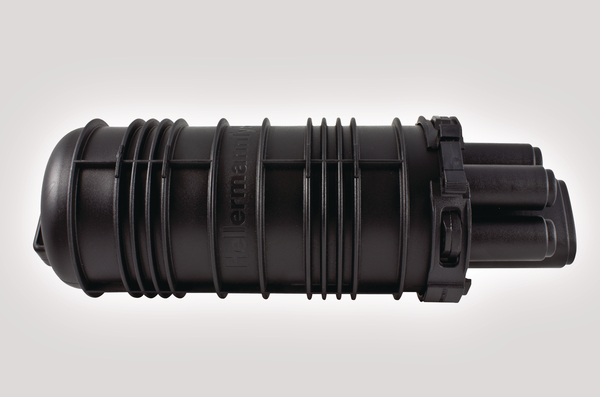

MRBU showing 4 port base (side view)
13 Port Base Configuration

    • Maximum 30 pair cable capacity
    • Cover length of 310mm
    • 4 port base configuration which offers 3 round ports and 1 oval port
    • Cablelok compatible for all port sizes
    • Quick release cover
    Add to watchlist
    Downloads
    Content MRBU 4 Port Base
    A-Length Cover
    Quick Release Clamp
    Sealing 'O' Ring
    Desiccant
    Cable Ties
    Cover Type A
    Method of Sealing Cablelok, Heatshrink
    PART DESCRIPTION MRBTB-AXXFXXX
    Package Content packed in box
    Port LM, B
    Port count 4
    Product Group MRBU 30 Pair Closure
    Technical Description The MRBU closure is supplied with a polypropylene base and base configuration of 3 round ports and 1 oval port which cover a cable diameter of 4.8 - 16.5mm when using Cablelok mechanical seals and 6.0 - 22.0mm when using heatshrink. The cover diameter and length and 110 x 310mm and each closure has a maximum capacity of 30 copper pairs.
    Type MRBTB-AXXFXXX
    D1 110mm
    D2 110mm
    Length 310mm
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660114861
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.55m
    Packaging 1 - Qty 1
    Packaging 1 - Type box
    Packaging 1 - Volume (m³) 0.012375m³
    Packaging 1 - Weight (kg) 0.5kg
    Packaging 1 - Width (m) 0.15m
    ETIM 7.0 Key EC003517
    ETIM 8.0 Key EC003517
    ETIM 9.0 Key EC003517
