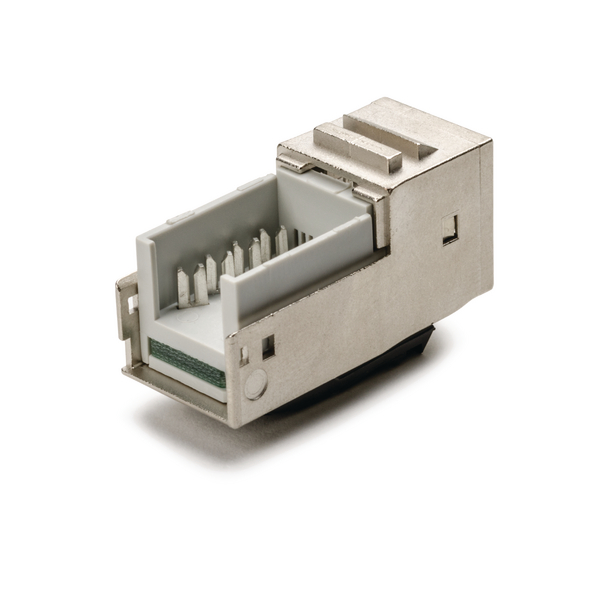

CAT6A Shielded Keystone Jack KSJ08SC6A

Modular RJ45 - Metal, Article number: 852-40000

Features

  • Best in Class for quality & performance
  • Exceeds Category 6A/Class EA standards
  • Quality die cast body
  • 360° shielding ensures all round protection from alien crosstalk
  • Single action hand tool termination
  • No punchdown tool required
  • Part of the HellermannTyton 25 year system warranty
  • Suitable for PoE applications

Certifications & Approvals

Colour Metal (ML)
Description HellermannTyton’s Shielded Category 6A keystone jack is designed to support your 10G installation needs. Its design includes HellermannTyton’s innovative 10 pin technology which helps to guarantee superior performance while exceeding the TIA/EIA Category 6A standard. All eight terminations are made at once using our hand termination tool which helps ensure quality and consistency of the connections. Once terminated, jacks are compatible with HellermannTyton shielded modular patch panels and modular faceplates.
PART DESCRIPTION KSJ08SC6A
Performance Category Category 6A (Class EA)
Port count 1
Product Family Modular RJ45 - Metal
Product Group CAT6A Shielded Keystone Jack
Short Description CAT6A Shielded Keystone Jack

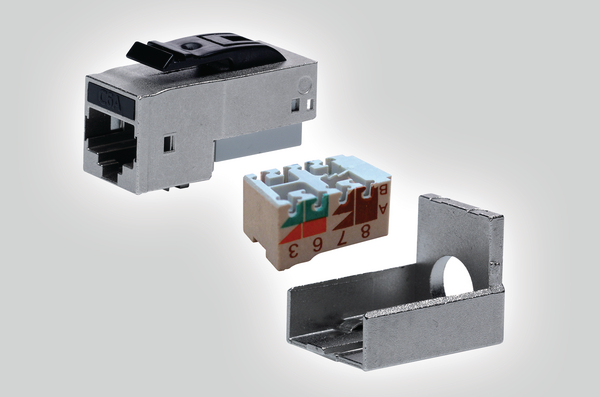

Technical Description The Cat6a Keystone Jack has a die cast shielded body which provides exceptional alien cross talk results whilst ensuring that the product is robust and has a high quality finish. The die cast shielded body bonds with the earth in the panel eliminating opportunities for alien cross talk to ensure 360° shielding. The keystone jack is designed to be ‘non-punch down’ and all 8 terminations are made at once using the comfort Termination Tool (see Accessories). HellermanTyton CAT6A jacks are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 6A.

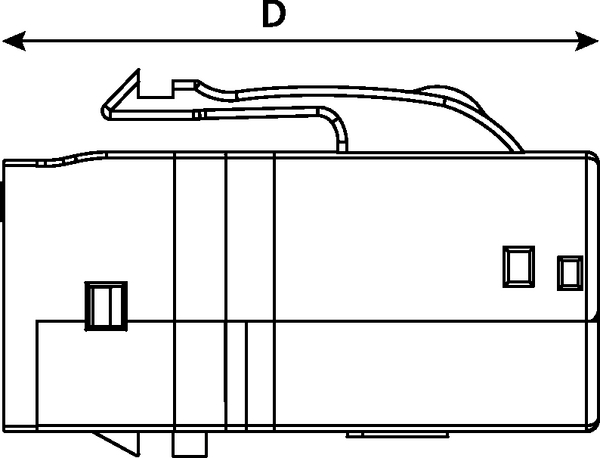

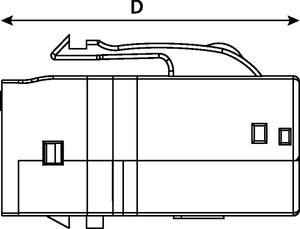

Depth (D) 36.0mm

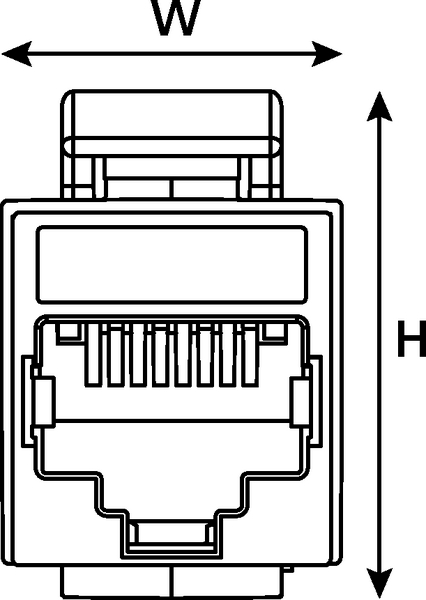

Height (H) 23.0mm
Width (W) 16.0mm
Specifications
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E216789
Dimensions W x H x D 16.0 mm x 23.0 mm x 36.0 mm
EAN / GTIN 5022660993138
Weight 0.026kg
UNSPSC Key 39121444
