Keystone Jacks RJ45FC5E

Category 5e Jacks, Article number: 852-25032

Features

  • Exceeds Category 5e performance standards
  • Industry standard modular 'keystone' dimensions
  • Rear cable tie point
  • 110 IDC termination
  • 12 coloured jack options
  • Palm tool for easy on site installation
  • 568A and 568B wiring options
  • Backward compatible with Category 5 and voice

Certifications & Approvals

Colour Office White (OEWH)
Description HellermanTyton’s Category 5e module Keystone Jacks offer exceptional performance that will support Gigabit Ethernet and 622 Mbps ATM applications with complete reliability. Adapters are available to enable the Keystone Jacks to be assembled with the GigaBand/Alpha Snap shuttered outlet and 6C Angled module. The Category 5e keystone jacks are designed to support any data or voice protocol that is capable of running over a Category 5e cabling system.
Features and Benefits HellermannTyton offers selected flush mount keystone jacks in bulk packs of 50. The bulk pack includes convenient partitions for each jack and includes the palm installation tool and strain relief ties.
Pack Cont. 50
Package Quantity per box
PART DESCRIPTION RJ45FC5E
Performance Category Category 5E (Class D)
Port count 1
Product Family Category 5e Jacks
Product Group Keystone Jacks

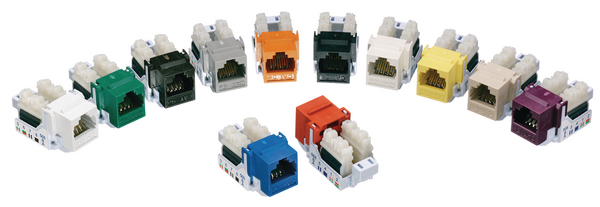

Technical Description Available in Black(BLK), Blue(BLU), Brown(BRN), Green(GRN), Grey(GRY), Ivory(I), Office White(FW), White(W), Yellow(YEL), Orange(ORN), RED(RED) and Violet(VIO). Bulk packs of 50 Keystone Jacks are available on request. The Category 5e Keystone Jack is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 5e.

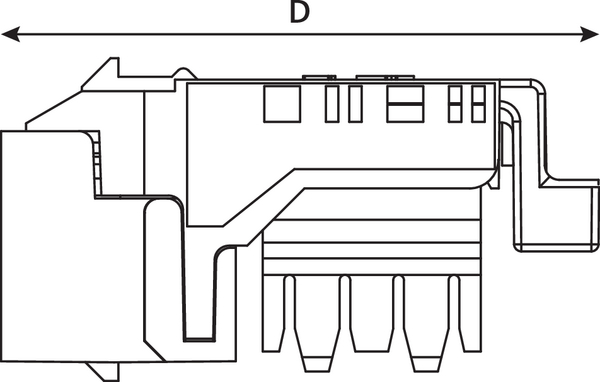

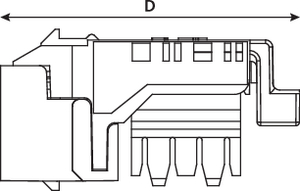

Depth (D) 42.0mm

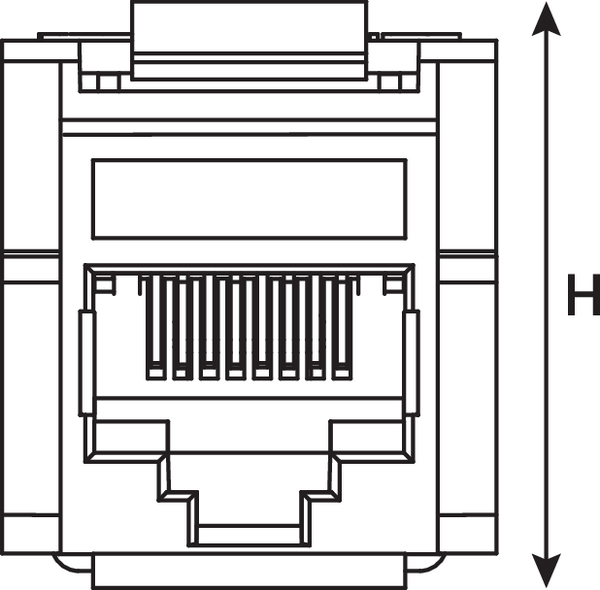

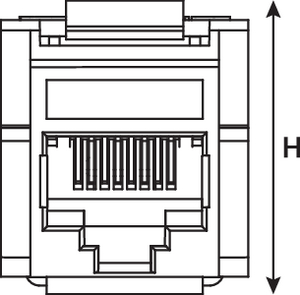

Height (H) 23.0mm

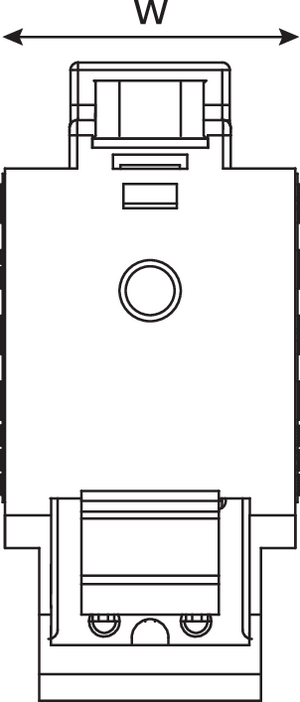

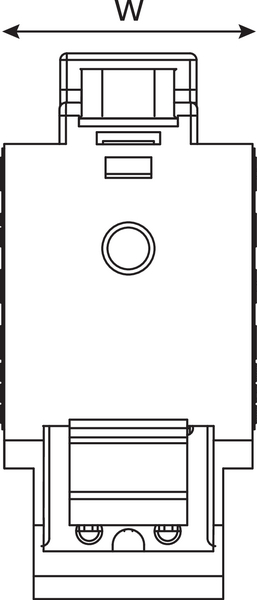

Width (W) 19.0mm
Specifications
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E216789
Dimensions W x H x D 19.0 mm x 23.0 mm x 42.0 mm
EAN / GTIN 5022660830808
Weight 0.5kg
UNSPSC Key 39121444
