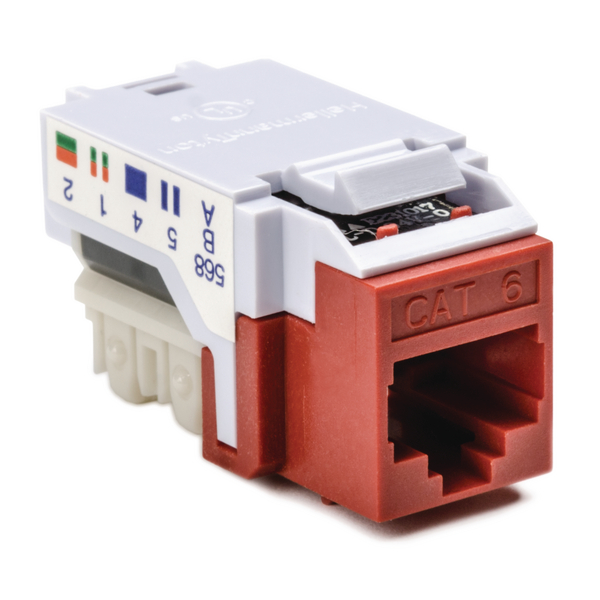

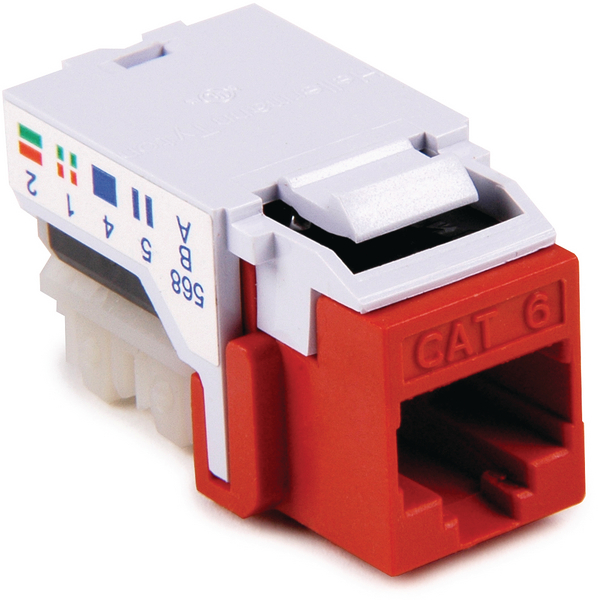

Keystone Jacks : RJ45FC6-RED

Category 6 Jacks, Article number: 852-25074


  • Industry standard modular 'Keystone' dimensions
  • Exceeds Category 6 performance standards
  • 110 IDC termination
  • 568A and 568B wiring options
  • Rear cable tie point
  • 12 coloured jack options
  • Palm tool for easy on site installation
  • Backward compatible with Category 5e, Category 5 and voice

Certifications & Approvals


• Jack life min. 1000 insertions
• Wire gauge 22-24 AWG
• Max. of two wires per IDC contact (same gauge)
• IDC life up to 50 re-insertions
• Module material - Polycarbonate Support, ABS Jack

Application 2 The Cat6 Keystone Jack have been designed to support their respective protocol with Cat6 and Cat5E being backwards compatible with existing network infrastructure.
Colour Red (RD)
Description HellermannTyton's Category 6 modular Keystone Jack is designed to future proof installations. Its patented contact design uses innovative alien crosstalk cancellation technology, ensuring industry leading performance. Adapters are available to enable the Category 6 Keystone Jack to be assembled with the GigaBand/Alpha Snap shuttered outlet and 6C Angled Module. The Category 6 keystone jacks are designed to support any data or voice protocol that is capable of running over a Category 6 cabling system.
Features and Benefits HellermannTyton's GigaBand flush Category 6 modular jack is designed to "future proof" installations. Its patented design uses innovative crosstalk cancellation technology. The performance of the GigaBand system provides significant margin over TIA Category 6 (TIA/EIA-568-b.2-1) and ISO Class E (ISO/IEC-11801, 2nd edition) requirements. The GigaBand system will easily support applications such as Gigabit Ethernet. ETL tested and approved for Category 6 component compliance.
Pack Cont. 1
Package Quantity per bag
Performance Category Category 6 (Class E)
Port count 1
Product Family Category 6 Jacks
Product Group Keystone Jacks
Technical Description Available in the following colours: W(White), FW(Office White), I(Ivory), GRN(Green), RED(Red), BLU(Blue), BRN(Brown), YEL(Yellow), ORN(Orange), GRY(Grey) and BLK(Black). Bulk packs of 50 keystone jacks are available on request. The Category 6 Keystone Jacks are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 6. The Alpha Label software package is available for download at and enables straight forward port labelling. The Category 6 Keystone Jacks offer backward compatibility with Category 5e, Category 5 and voice products.
Depth (D) 42.0mm
Height (H) 23.0mm
Width (W) 19.0mm
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E216789
Dimensions W x H x D 19.0 mm x 23.0 mm x 42.0 mm
EAN / GTIN 5022660831232
Weight 0.010kg
UNSPSC Key 39121444
