Downlight Covers - For Residential Buildings SpotClip-Box

SpotClip-Box, Article number: 148-00122

Features

  • Suitable for all types of suspended ceilings and a variety of insulation materials
  • Ensures safety distance between the downlight, damp-proof foil and insulation material
  • Additional spikes at the bottom of the product prevent shifting during installation
  • Connection without the need for screws, with HelaCon Lux connectors included
  • Prevents damage to insulation material caused by overheating
  • Improves life span and reliability of lamps
  • Quick and easy one-click installation with bayonet mechanism
  • Can also be used to install downlights and speakers in concrete ceilings constructed on-site
  • Tested according to EN 60598-1, EN 60598-2-2, and NF C 15100

Certifications & Approvals

Application

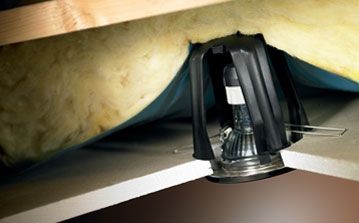

SpotClip-Box has been designed especially for passive houses. This innovative downlight cover prevents contact between insulation material and the bulb. The insulation remains continuous, thus avoiding any breach in the integrity of insulation in the passive house. SpotClip-Box is suitable for LED and compact fluorescent-lamp downlights with a diameter of up to 75 mm and a maximum height of 130 mm.
It is available as a complete kit, including HelaCon Lux wire connectors and all necessary mounting components.

SpotClip-Box is suitable for following markets and industries

  • Electrical Installation Electrical Installation
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Downlight Cover Box for recessed spotlights with Ø 75 mm black
Pack Cont. 1pc.
Package Quantity per box
PART DESCRIPTION SpotClip-Box-PA66HS-BK
Product Family SpotClip-Box
Product Group Downlight Covers - For Residential Buildings
Height (H) 140mm
Height (H2) 130mm
Outside Ø (OD) 184mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2, self-extinguishing, Glow Wire Test (GWT) 960 °C
Halogenfree Yes
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C -40 °C to +105 °C
Specifications
Suitable for high voltage luminaires Yes
Suitable for low voltage luminaires Yes
EAN / GTIN 4031026480091
Packaging 1 - Height (m) 0.142m
Packaging 1 - Length (m) 0.185m
Packaging 1 - Qty 1
Packaging 1 - Type pcs.
Packaging 1 - Volume (m³) 0.00486
Packaging 1 - Weight (kg) 0.377kg
Packaging 1 - Width (m) 0.185m
Packaging 3 - Height (m) 0.3m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 12
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.072
Packaging 3 - Weight (kg) 5.484kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.044m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 144
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.002
Packaging 4 - Weight (kg) 86.808kg
Packaging 4 - Width (m) 0.8m
Weight 0.247kg
ETIM 6.0 EC000414
ETIM 7.0 Key EC000414
