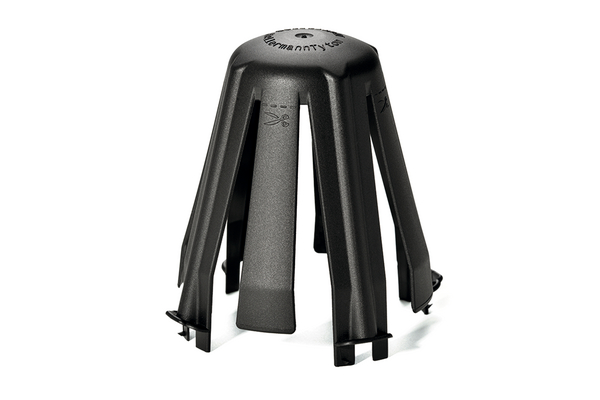

Downlight Covers - For Residential Buildings SpotClip-II

SpotClip II, Article number: 148-00098

Features

  • SpotClip-II has been developed for bulbs up to 95 mm height

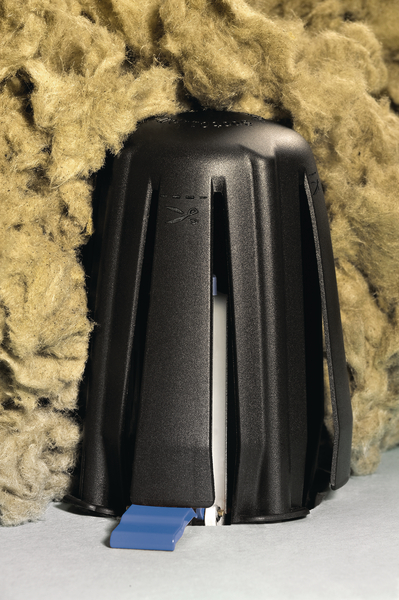

  • Ensures safety distance between downlight, damp-proof foil and insulation material
  • Flexible installation during or after construction

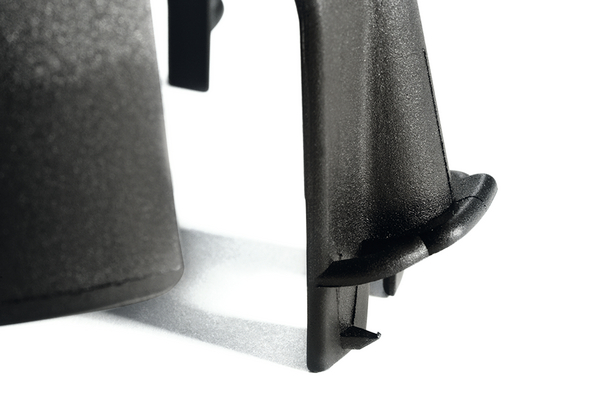

  • Additional spikes at the end of the legs prevent SpotClip shifting
  • Suitable for fixing into holes from 62 - 90 mm diameter
  • Remains rigid even at higher temperatures
  • Flame retardant material according to UL94-V0
  • Improves life span and reliability of lamps
  • Tested according to EN 60598-1, EN 60598-2-2, and NF C 15100

Certifications & Approvals

Application

For diameters between 62 and 90 mm

SpotClip II is suitable for following markets and industries

  • Electrical Installation Electrical Installation
  • Electronics Industry Electronics Industry
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Downlight Cover for recessed spotlights with Ø 62-90mm black

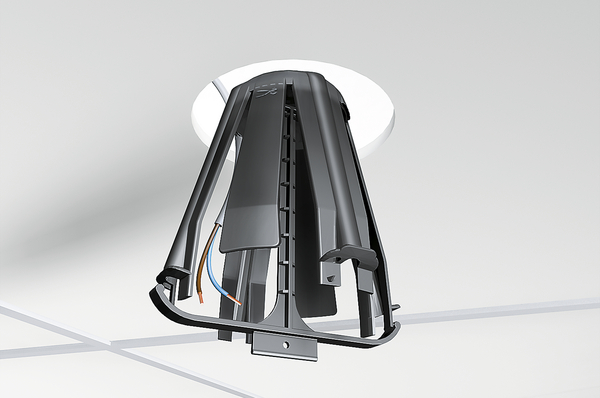

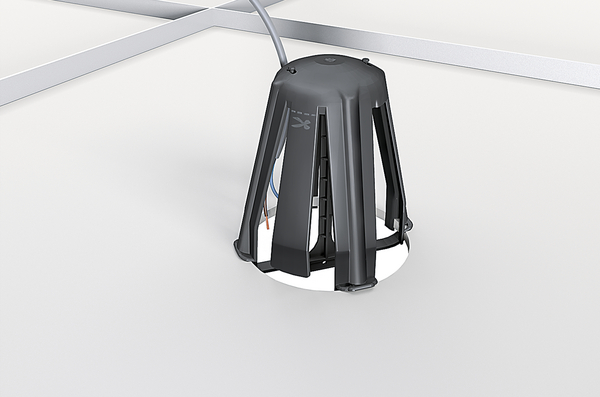

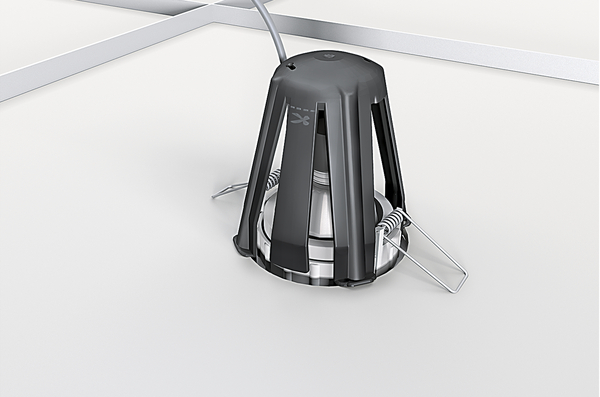

Features and Benefits Advantages - Thanks to the mounting clips, SpotClip locks easily in place in the ceiling cavity. - The 4-leg design ensures high stability and durability. - Additional winglets between the legs mean a mechanical barrier to protect the spot from retroactively blown-in insulating material - The arrangement of the flexible mounting feet enables the clips for the spots to be snapped easily into place. - Additional retaining spikes prevent shifting and displacement during mounting. - The cable retainers on the heat protection top hold the supply cable in place and prevent it from coming into direct contact with the hot spot. They also make it easier to mount and replace the spot.
GLOBAL PART DESCRIPTION SpotClip-II-PA66GF15-BK
Pack Cont. 10pcs.
Package Quantity per bag
Product Family SpotClip II
Product Group Downlight Covers - For Residential Buildings

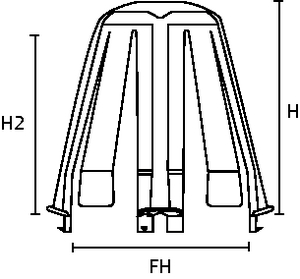

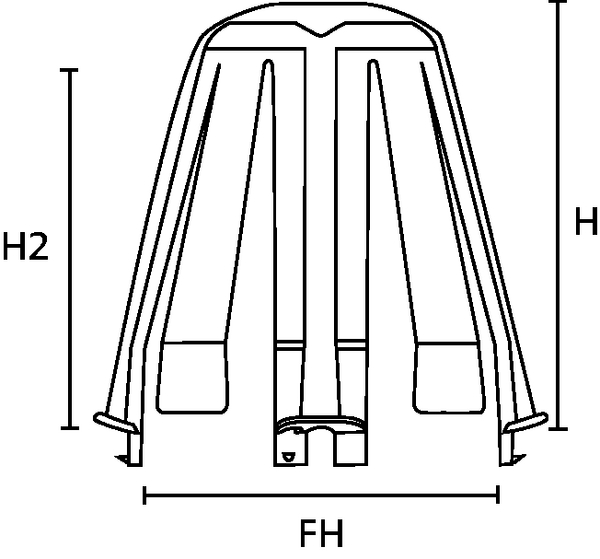

for Hole ∅ (FH) 62 - 90 mm
Height (H) 107mm
Height (H2) 95mm
Max. diameter luminaire 115mm
Min. ceiling thickness 8mm
ELV compliant (Article 4 - 2) YES
Flammability material rated UL94 V0 at 1.5 mm thickness, Glow Wire Test (GWT) 960 °C
Halogenfree Yes
Hazardous good No
Material Polyamide 6.6, glass-fibre reinforced (PA66GF15%)
Operating Temperature - °C -20 °C to +120 °C
Specifications
Suitable for high voltage luminaires Yes
Suitable for low voltage luminaires Yes
EAN / GTIN 4031026439525
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 0.36m
Packaging 1 - Qty 10
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00846
Packaging 1 - Weight (kg) 0.421kg
Packaging 1 - Width (m) 0.235m
Packaging 3 - Height (m) 0.13m
Packaging 3 - Length (m) 0.415m
Packaging 3 - Qty 50
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0218
Packaging 3 - Weight (kg) 2.603kg
Packaging 3 - Width (m) 0.405m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1800
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 114.708kg
Packaging 4 - Width (m) 0.8m
Weight 0.421kg
ETIM 5.0 EC000414
ETIM 6.0 EC000414
