04/05/2024

AdSe-t 110x3,2
Art.-No. 875-00022 | AdSe-t_110x3.2-PVC-BK Details

  • gas- and water-tight up to 0.5 bar
  • reusable
  • compatible with multiple ducts 2x32 and 2x40

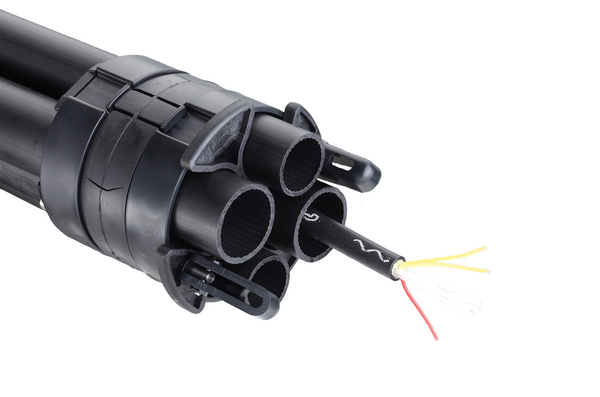

Application With the divisible AdSe-t sealing and retaining discs, the remaining cavity between cable duct tube or pipe section and multiple tube is sealed and secured at the same time. The shaped parts are gas and watertight to 0.5 bar and are also suitable for retrospective installation on multiple tubes containing pulled-through cables. Available for the combination of PE duct and steel pipe, PP duct and cable duct blocks (KKF), PVC duct and split duct (KKHR) as well as PVC duct only.
Application Method PVC pipe 110 x 3.2 / KKHR 110 x 3.2
Colour Black (BK)
Material Polyvinylchloride (PVC)
Pack Cont. 20
Package Content packed in carton
PART DESCRIPTION AdSe-t_110x3.2-PVC-BK
Product Family AdSe-t 110x3,2
Product Group Divisible sealing and fixing discs.
Diameter (D) 110mm
Country of Origin DE
GTIN-13 / EAN 4031051012649
Packaging 1 - Qty 20
Packaging 1 - Type carton
Packaging 2 - Qty 360
Packaging 2 - Type pallet
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
