Self-amalgamating Tapes – Electrical Insulation Mastic : HTAPE-POWER650

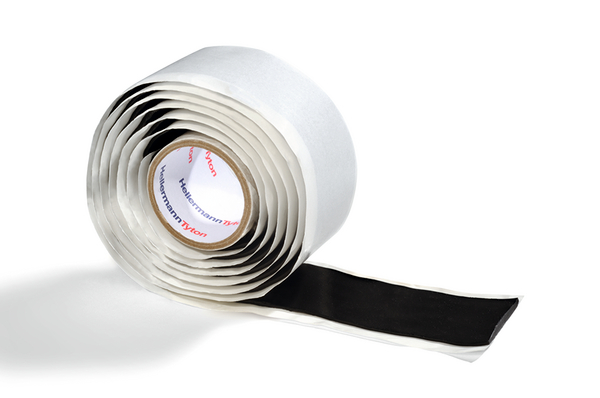

Self-amalgamating low voltage mastic tape 38 mm x 1.5 m blackArticle number: 711-10300

Features

  • Self-amalgamating insulation compound for sealing and padding cable jackets up to 1 kV
  • Easily moulded by hand to conform to irregular shapes even during low temperatures
  • Permanently elastic and resistant to ageing
  • Perfect adhesion to metal and all types of cable insulations and jackets
  • Provides excellent moisture sealing
  • Resistant to salt water, ozone, oil and corrosive chemicals
  • Excellent for repairing e.g. damaged cable sheats against moisture ingress, where finishing with some layers of Helatape Flex will do the mechanical protection

Certifications & Approvals

Colour Black (BK)
Pack Cont. 1.5m
Package Quantity per reel
PART DESCRIPTION HTAPE-POWER650-IIR-BK
Product Family HelaTape Power 650
Product Group Self-amalgamating Tapes – Electrical Insulation Mastic
Short Description Self-amalgamating low voltage mastic tape 38 mm x 1.5 m black
Length (L) 1.5m
Thickness (T) 3.2mm
Width (W) 38mm
Dielectric Strength 19.7 kV/mm
ELV compliant (Article 4 - 2) YES
Halogenfree Yes
Hazardous good No
Insulating (Yes/No) Yes
Intermittent Operating Temperature +130°C
Material Isobutene-Isoprene-Rubber (butyl rubber) (IIR)
Operating Temperature - °C -10 °C to +105 °C
Self extinguishing (Yes/No) Yes
Specifications
Suitable for high voltage (Yes/No) No
UV-Resistant (Yes/No) Yes
Volume Resistance 10¹⁵ Ω cm
Water Absorption 0.1%
EAN / GTIN 4031026548838
Packaging 1 - Height (m) 0.115m
Packaging 1 - Length (m) 0.115m
Packaging 1 - Qty 1
Packaging 1 - Type pcs.
Packaging 1 - Volume (m³) 0.00085
Packaging 1 - Weight (kg) 0.296kg
Packaging 1 - Width (m) 0.064m
Packaging 3 - Height (m) 0.17m
Packaging 3 - Length (m) 0.355m
Packaging 3 - Qty 12
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0151
Packaging 3 - Weight (kg) 4.049kg
Packaging 3 - Width (m) 0.25m
Packaging 4 - Height (m) 1.165m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 648
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.118
Packaging 4 - Weight (kg) 239.64kg
Packaging 4 - Width (m) 0.8m
Weight 0.274kg
ETIM 6.0 EC000128
ETIM 7.0 Key EC000128
