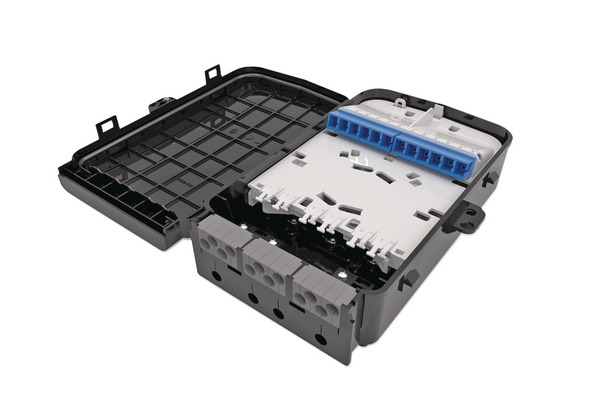

FFE with 12 SC PC SX Adaptors
Art.-No. 857-01812
| FFE12-03SCSPXX1/BK
Copied
- Maximum capacity: 12 SC Simplex Adaptors
- 4 Inbound/12 Outbound ports
- Separation of inbound fiber from connectorized drop cables
- Positive Fiber Management to maintain consistent 30mm minimum bend
- PLC splitter accommodation (60mm x 7mm x 4mm - max 3)
- Supports 3A and ANT splice protector types
- IP55 and IK08 rating
- Pole or building/facade mounted
More products in this product group:
| Application | The Fibre Facade Enclosure has been designed to provide a Fibre Connection Point. The closure can be building/facade or pole mounted and provides 8 or 12 SC or LC Simplex customer connection points. |
| Adapter Capacity | 12 |
| Color | Black (BK) |
| Content |
Fiber Facade Enclosure Fiber Splice Tray and Management System 12 x SC PC Simplex Adapters (Blue) and OS2 Pigtails Incoming Cable Seal - Maximum Cable Diameter 8mm Drop Cable Seals - Maximum Cable Diameter 8mm |
| Description | The Fiber Façade Enclosure (FFE) features three separate areas to manage inbound cable, fiber splices and drop cables (customer connection). The inbound cable area has a lay-in dedicated entry area, supporting both cable end and mid-span applications with loop storage capacity for up to 1.5 m of fiber. The fiber splice area has capacity for a maximum of 24x heat shrink splices and maintains positive fiber management (30 mm minimum bend radius) throughout. The tray has a crossover facility that allows for alternative routing requirements and a fiber storage capacity of 1.5 m for 250µm fiber and 1.0 m of 900µm fiber. A PLC splitter (60 mm x 7 mm x 4 mm) can be installed on the inside of the management area. The adapters are angled and spaced to allow for inspection prior to connection. Twelve included anchor guides secure the drop cables (maximum diameter 8.0 mm). |
| PART DESCRIPTION | FFE12-03SCSPXX1/BK |
| Packaging Type | box |
| Part No. | FFE12-3SSP |
| Pigtail Cable Capacity | 12 |
| Product family | FFE Enclosures |
| Short Desc. | FFE, 12-Port with SC SX SM Blue Adapters and 12 Pigtails, 8mm Feeder, PCUV, Black, 1/pkg |
| Splice Capacity | 24 |
| Technical Description |
The Fibre Facade Enclosure (FFE) is manufactured from UV stable black polycarbonate with a completely detachable lid which can also be snapped back in to position using the snap back hinges allowing unrestricted access to all fibre management areas. The enclosure has 3 separate management areas for inbound cable, fibre splice management and drop cable (customer connection) management. The inbound cable management area has a dedicated cable entry port which supports both cable end and mid-span applications with loop storage capacity for up to 1.5m* of excess fibre and the entry port is sealed with a cable entry kit to maintain the IP55 rating. The fibre splice management area has capacity for a maximum of 12 x 3A or 24 ANT splices and maintains positive fibre management (30mm minimum bend radius) throughout. The tray has a crossover facility which allows for alternative routing requirements and a fibre storage capacity of 1.5m for 250µm fibre and 1.0m of 900µm fibre. The drop cable management area presents 12 SC PC Simplex adaptors for connection to industry standard pre-terminated drop cables and a maximum of 3 PLC splitter (60mm x 7mm x 4mm) can be fitted on the inside of the management area. The drop cable management area cover prevents access to the network cables and splicing area and the adaptors are angled and spaced to allow for inspection prior to connection. Anchor guides are provided for securing the drop cables (maximum diameter 8.0mm) and an integral seal maintains the IP55 rating. |
| Trunk Cable Port Quantity/Size | 4x 8 mm max. |
| Type | FFE12-03SCSPXX1/BK |
