MDU-S3S with horizontal SE MKII trays
Art.-No. 857-03068 | MDU-S3S-C02A1 |

Copied

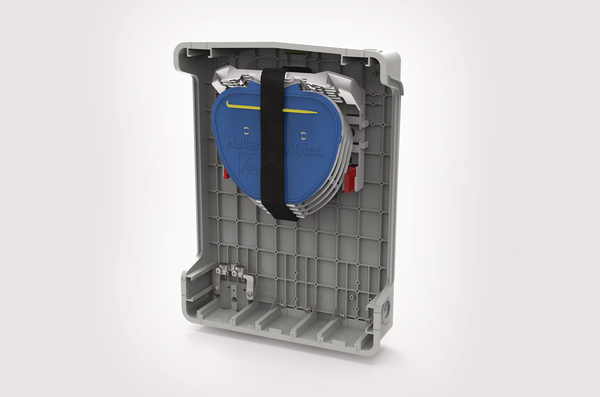

MDU - S3S Splice Only closure with horizontal SE MKII trays.
MDU - S3 shown with lid and optional lock.
MDU - S3 shown with loop through seal.

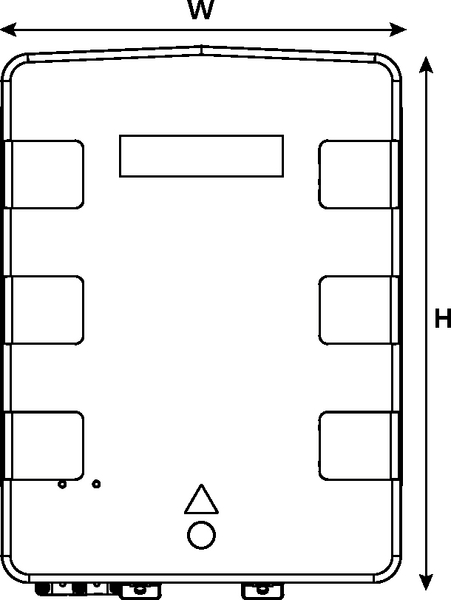

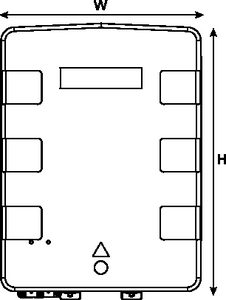

MDU - S3S shown in front view.

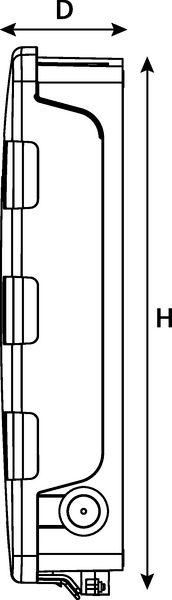

MDU - S3S shown in side view.
MDU - S3S shown in base view.

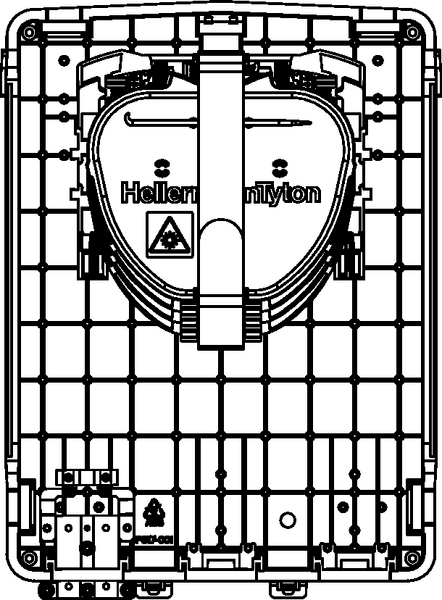

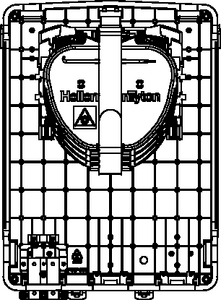

MDU - S3S closure with horizontal SE MKII trays.
MDU - S3 (rear view)

    • Indoor/outdoor applications
    • Maximum 96 Fibre Splices (3A)
    • Fibre Management System (FMS) suitable for 4 SE MKII Trays with 3A Splice Bridges
    • 2 FMS entry points
    • 3 modular cable entry/exit ports
    • Loop Through Cable Entry Kit with black rubber seals
    Add to watchlist
    Downloads
    Application Designed for deployment within the last mile of the FTTx network. This enclosure can be used within a Point to Point (P2P) or Point to Multi Point (P2MP) with the addition of PLC splitters, connectorised or bare end, pigtails and adaptors.
    PART DESCRIPTION MDU-S3S-C02A1
    Product Family Fibre Optic External/Internal Enclosure
    Product Group S3 Series MDU/MBU Enclosures
    Short Description MDU-S3S with horizontal SE MKII trays
    Technical Description The S3 enclosure is configured with the HellermannTyton 250µm IR Management System. The management system accommodates 4 SE-IR trays giving a maximum of 48 3A fibre splices and 3 PLC splitters. The position of the fibre management system allows for easy access for the routing of fibre on to the trays. The trays and fibre optic routing modules are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. Fibre slot retaining blocks guide the fibre elements on to the IR system; the foam pad on the retainer is partially cut through to accommodate a range of fibre counts.
    All IR system cover plates are coloured blue identifying them as removable parts allowing access to the fibre, the fibre retaining block and tray retaining clips are coloured red to aid in identification if they are dropped.
    A 340 x 247 x 76mm (H x W x D) enclosure manufactured in light grey (RAL 7035) ABS (Acrylonitrile Butadiene Styrene). The enclosure is UV stable with an IP54, IK08 and V0 rating.
    Designed with 7 input/output ports, 3 across the bottom, 2 on the top and 1 on each side. Each port will accommodate a single 20mm cable gland or alternatively a Loop Gland Seal or Drop Cable Seal (each drop cable seal will manage 24 x 5mm drops) can be fitted
    A 100 x 25mm inset position on the front cover allows for a customer logo to be moulded in to the enclosure.
    The S3 MDU enclosure is a modular solution and can be configured in a number of ways to suit the deployment of a specific project or installation. Options include splice trays, loop storage, connectorised versions, splitter accommodation and loop through provision.
    Type MDU-S3S-C02A1
    IP-Rating IP54
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026791692
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC001124
    ETIM 9.0 Key EC001124
