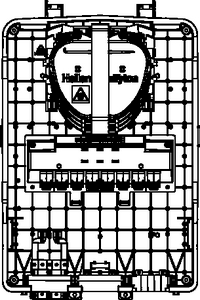

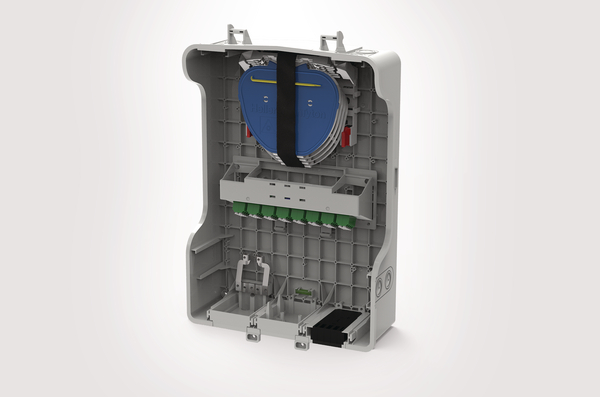

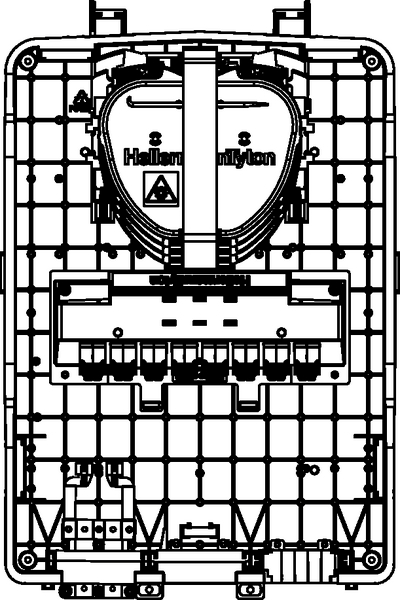

MDU S4 Connectorised with 4 SE MKII 3A trays - 64 LC/APC connections
Art.-No. 857-03158
| MDU-S4C-C02A2-12A
|
Copied
- Up to 64 connections
- Small Angled IR Fibre Management System (FMS) with 4 SE MKII trays with 3A Splice Bridges
- 2 FMS cable entry points
- Fitted Loop Through Anchor Gland
- Includes 1 Multi Drop Seal
- Optional MDU Accessories
- IP54/IK08
- UV Stable / UL-94 V0 Rating
More products in this product group:
| Application | Many point-to-point as well as passive optical networks (PON) topologies demand the use of a connector based design to facilitate both efficient customer connection (and disconnection) as well as troubleshooting. The S4 connectorised family of MDU solutions has a great many options available to help with solving even the most complex of network requirements. Whether to question is one of connector type, subscriber count, topology or even how the solution is optimized to use pre-connectorised fan-out cables. |
| Colour | Light Grey (LTGY) |
| Connector Colour | Green (GN) |
| Content |
MDU S4 enclosure Central Small Angled IR Fibre Management System (FMS) 2 x Fibre Retention Blocks / FMS Entry Points 4 x SE MKII Splice Trays fitted with 2 x 3A Splice Bridges Integrated Connectorised Unit (ICU) 16 x LC APC Quad Adaptors 1 x Loop Through Anchor Bracket 1 x Cable Entry Seal Kit (3-14mm range) 1 x S4/S5 Multi Drop Seal (24 ports x 5mm) 1 x Wall Mounting Kit |
| PART DESCRIPTION | MDU-S4C-C02A2-12A |
| Product Family | Fibre Optic External/Internal Enclosure |
| Product Group | S4 Series MDU/MBU Enclosures |
| Qty Trays | 4 |
| Short Description | MDU S4 Connectorised with 4 SE MKII 3A trays - 64 LC/APC connections |
| Splice Capacity | 240 |
| Technical Description |
The HellermannTyton S4 wall mountable enclosures are suitable for both internal and external applications and have been developed for use within the last mile of the FTTX network. The medium MDU enclosure is 470 x 307 x 147mm (H x W x D) and manufactured in light grey (RAL 7035), UV stable ABS (Acrylonitrile Butadiene Styrene) and has an IP54, IK08 and UL-94 V0 rating. The MDU S4 cover can be customised with a moulded or labelled customer logo. The S4 C (Connectorised) can be configured with the small angled IR Fibre Management System (FMS) which accommodates 4 SE IR MKII splice trays giving a maximum of 96 3A splices and up to 3 PLC splitters. The Integrated Connector Module (ICU) holds 16 LC APC Quads and is fitted below the FMS. A loop through anchor bracket is pre-fitted on the left port of the base. The dual outlet of the bracket allows for loop through applications. The black rubber seals cover a cable range of 3-14mm OD cable. The 2 red retaining blocks guide the fibre elements onto the FMS and their foam pads can be cut through to accommodate a range of fibre counts. One multi-drop seal (24 x 7mm drops) is pre-fitted on the right port of the base. An extensive range of optional accessories is available upon request and include lock, multi-drop seals (24 x 7mm), M20 and M25 cable glands (up to 18mm), loop through anchor kit, drop cable anchor brackets, SC or coloured splice trays, splitter holders for trays, internal or external loop storage baskets. |
| Type | MDU-S4C-C02A2-12A |
| Variant | Indoor/Outdoor FTTx Enclosures |
