MDU S4 Connectorised with 10 SE MKII ANT trays - 48 LC/APC connections
Specific to German NE3 DP
Art.-No. 857-03099 | MDU-S4C-L05C2-16A |

Copied

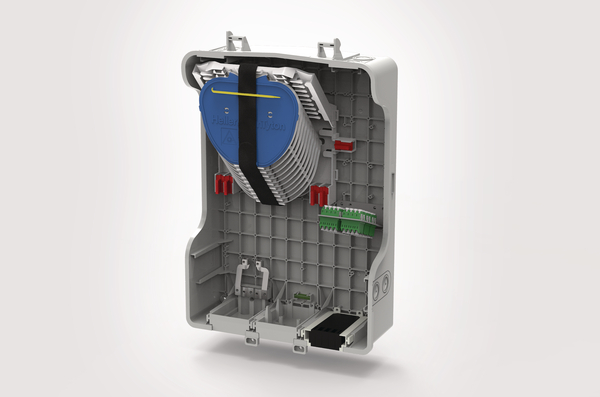

MDU - S4C Connectorised closure.

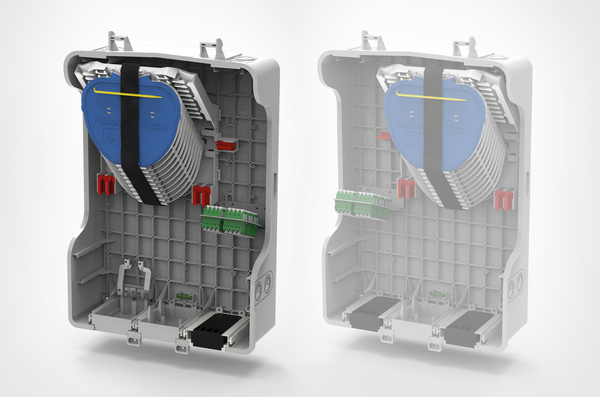

MDU - S4 shown with lid and optional lock.

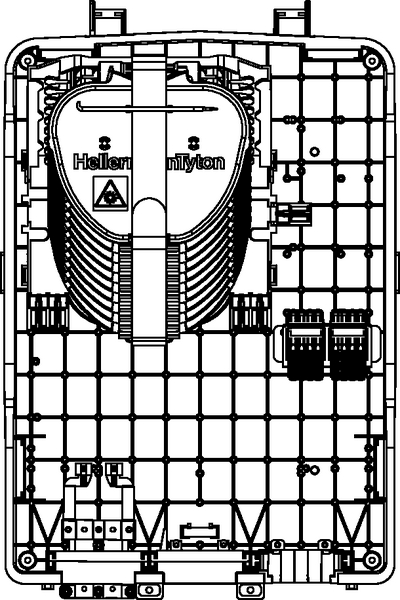

MDU - S4 with optional lock shown in front view.
MDU - S4 shown in side view.
MDU - S4C shown in base view.
MDU - S4C closure.

    • Up to 48 connections
    • Indoor/outdoor applications
    • Maximum Splice Capacity: 240 (3A or ANT)
    • FMS with 10 SE IR trays with ANT Splice Bridges
    • 5 FMS cable entry points
    • 1 entry port fitted with Loop Through Anchor Gland
    • 1 Multi Drop Seal
    • Optional MDU Accessories
    • IP54/IK08
    • UV Stable / UL-94 V0 Rating
    • Used in conjunction with MDU-S4C-R05C3-16A (German NE4 In-Building Network)
    Add to watchlist
    Downloads
    Application Many point-to-point as well as passive optical networks (PON) topologies demand the use of a connector based design to facilitate
    both efficient customer connection (and disconnection) as well as
    troubleshooting. The S4 connectorised family of MDU solutions has a great many options available to help with solving even the most complex of network requirements. Whether to question is one of connector type, subscriber count, topology or even how the solution is
    optimized to use pre-connectorised fan-out cables.
    Colour Light Grey (LTGY)
    Connector Colour Green (GN)
    Content MDU S4 enclosure
    Left Large Angled IR Fibre Management System (FMS)
    5 x Fibre Retention Blocks / FMS Entry Points
    10 x SE MKII Splice Trays fitted with 2 x ANT Splice Bridges
    Metal Connector Plate (48 Way)
    12 x LC APC Quad Adaptors
    1 x Loop Through Anchor Bracket
    1 x Cable Entry Seal Kit (3-14mm range)
    1 x S4/S5 Multi Drop Seal (24 ports x 5mm)
    1 x Wall Mounting Kit
    PART DESCRIPTION MDU-S4C-L05C2-16A
    Product Family Fibre Optic External/Internal Enclosure
    Product Group S4 Series MDU/MBU Enclosures
    Qty Trays 10
    Short Description MDU S4 Connectorised with 10 SE MKII ANT trays - 48 LC/APC connections
    Specific to German NE3 DP
    Splice Capacity 240
    Technical Description The HellermannTyton S4 wall mountable enclosures are suitable for both internal and external applications and have been developed for use within the last mile of the FTTX network.

    The medium MDU enclosure is 470 x 307 x 147mm (H x W x D) and manufactured in light grey (RAL 7035), UV stable ABS (Acrylonitrile Butadiene Styrene) and has an IP54, IK08 and UL-94 V0 rating.
    The MDU S4 cover can be customised with a moulded or labelled customer logo.

    The S4 C (Connectorised) can be configured with the large angled IR Fibre Management System (FMS) which accommodates 10 SE IR MKII splice trays giving a maximum of 240 ANT splices and up to 6 PLC splitters.
    The metal connector plate holds 12 LC APC Quads and is fitted on the right side of the FMS.
    A loop through anchor bracket is pre-fitted on the left port of the base. The dual outlet of the bracket allows for loop through applications. The black rubber seals cover a cable range of 3-14mm OD cable.
    The position of the FMS on the right allows for horizontal splices andone additional red retaining block for easier access of the fibre routing onto the trays.
    The 5 red retaining blocks guide the fibre elements onto the FMS and their foam pads can be cut through to accommodate a range of fibre counts.
    One multi-drop seal (24 x 7mm drops) is pre-fitted on the right port of the base.

    An extensive range of optional accessories is available upon request and include lock, multi-drop seals (24 x 7mm), M20 and M25 cable glands (up to 18mm), loop through anchor kit, drop cable anchor brackets, SC or coloured splice trays, splitter holders for trays, internal or external loop storage baskets.
    Type MDU-S4C-L05C2-16A
    Variant Indoor/Outdoor FTTx Enclosures
    Depth (D) 147mm
    Height (H) 471mm
    Width (W) 307mm
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026791944
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
