MDU S5 Connectorised with 12 SE MKII 3A trays - 96 LC/APC connections
Art.-No. 857-03166
| MDU-S5C-L10A2-18A
|
Copied
- Up to 96 connections
- Maximum 488 Fibre Splices
- Standard Top Entry IR Fibre Management System (FMS)
- 12 SE MKII trays with ANT Splice Bridges
- 10 FMS cable entry points
- 1 entry port fitted with Loop Through Anchor Gland
- 1 Multi Drop Seal
- Optional MDU Accessories
- IP54/IK08
- UV Stable / UL-94 V0 Rating
More products in this product group:
| Application | Connectivity within the last-mile, be that with LC or SC style connectors is often the operator’s preferred presentation and makes day-one customer connection and day-two network trouble shooting and support more straightforward, especially where a PON solution requires bi-directional testing but needs to avoid testing the wrong way through the splitter. Connector counts from 8 to 96 are available with several styles of connector mounting options possible. |
| Colour | Light Grey (LTGY) |
| Connector Colour | Green (GN) |
| Content |
MDU S5 enclosure Left Standard Top Entry IR Fibre Management System (FMS) 10 x Fibre Retention Blocks / FMS Entry Points 12 x SE MKII Splice Trays fitted with 2 x 3A Splice Bridges Metal Connector Plate (96Way) 24 x LC APC Quad Adaptors 1 x Loop Through Anchor Bracket 1 x Cable Entry Seal Kit (3-14mm range) 1 x S4/S5 Multi Drop Seal (24 ports x 7mm) 1 x Wall Mounting Kit |
| PART DESCRIPTION | MDU-S5C-L10A2-18A |
| Product Family | Fibre Optic External/Internal Enclosure |
| Product Group | S5 Series MDU/MBU Enclosures |
| Qty Trays | 12 |
| Short Description | MDU S5 Connectorised with 12 SE MKII 3A trays - 96 LC/APC connections |
| Technical Description |

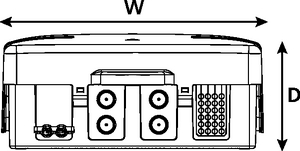

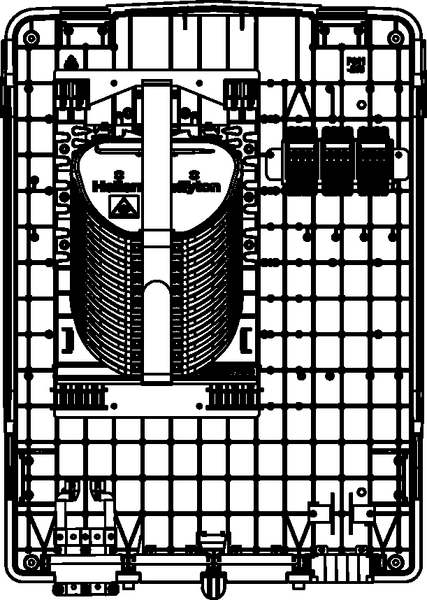

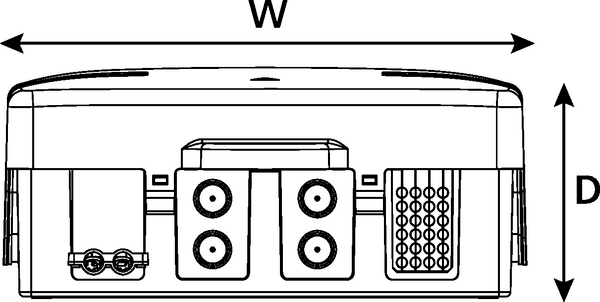

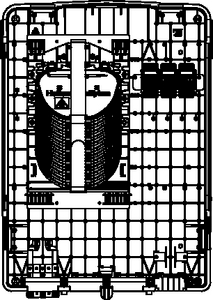

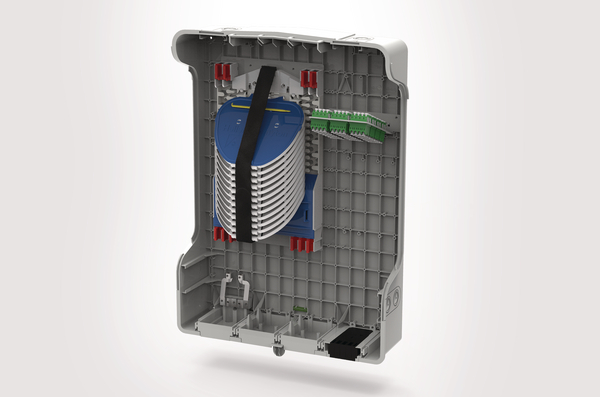

The largest MDU enclosure is 568 x 375 x 165mm (H x W x D) enclosure and manufactured in light grey (RAL 7035) ABS (Acrylonitrile Butadiene Styrene), UV stable with an IP54, IK08 and V0 rating. The MDU S5 cover can be customised with a moulded or labelled customer logo. The S5 C (Connectorised) can be configured with the standard top entry IR Fibre Management System (FMS) which accommodates 12 SE IR MKII splice trays giving a maximum of 288 3A splices and up to 6 PLC splitters. The metal connector plate holds 24 LC APC Quads and is fitted on the right side of the FMS. The 10 red retaining blocks guide the fibre elements onto the FMS and their foam pads can be cut through to accommodate a range of fibre counts. A loop through anchor bracket is pre-fitted on the left port of the base. The dual outlet of the bracket allows for loop through applications. The black rubber seals cover a cable range of 3-14mm OD cable. One multi-drop seal (24 x 7mm drops) is pre-fitted on the right port of the base. An extensive range of optional accessories is available upon request and include lock, multi-drop seals (24 x 7mm), M20 and M25 cable glands (up to 18mm), loop through anchor kit, drop cable anchor brackets, SC or coloured splice trays, splitter holders for trays, internal or external loop storage baskets. |
| Type | MDU-S5C-L10A2-18A |
| Variant | Indoor/Outdoor Enclosure |
