MDU S5 Connectorised with 12 SE MKII ANT trays - 96 LC/APC connections (+12 spares)
Specific to German NE4 In-Building Network
Art.-No. 857-03108 | MDU-S5C-L10C2-05A |

Copied

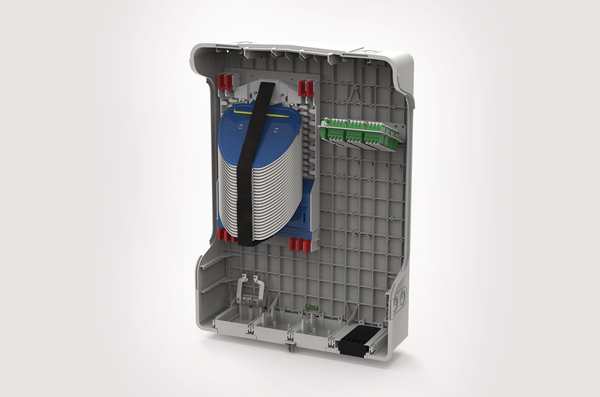

MDU - S5C Connectorised closure.
MDU - S5 shown with lid and optional lock.
MDU - S5 (front view)
MDU - S5 (side view)

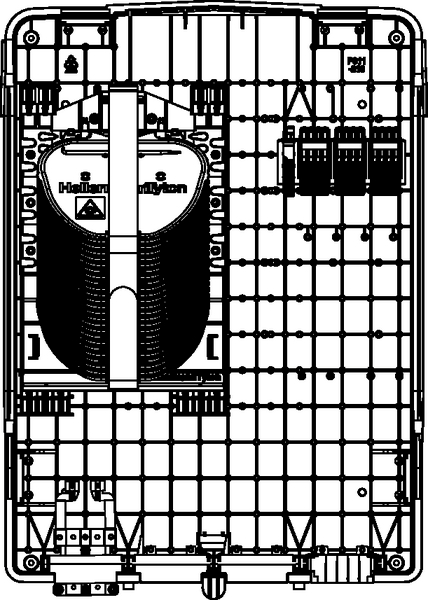

MDU - S5C shown in base view.
MDU - S5C closure.

    • Up to 96 connections (+12 spares)
    • Maximum 488 Fibre Splices
    • Standard Top Entry IR Fibre Management System (FMS)
    • 12 SE MKII trays with ANT Splice Bridges
    • 10 FMS cable entry points
    • 1 entry port fitted with Loop Through Anchor Gland
    • 1 Multi Drop Seal
    • Optional MDU Accessories
    • IP54/IK08
    • UV Stable / UL-94 V0 Rating
    • Used in conjunction with any MDU enclosure for German NE3 DP
    Add to watchlist
    Downloads
    Application Connectivity within the last-mile, be that with LC or SC style connectors is often the operator’s preferred presentation and makes day-one customer connection and day-two network trouble shooting and support more straightforward, especially where a PON solution requires bi-directional testing but needs to avoid testing the wrong way through the splitter. Connector counts from 8 to 96 are available with several styles of connector mounting options possible.
    Colour Light Grey (LTGY)
    Connector Colour Green (GN)
    Content MDU S5 enclosure
    Left Standard Top Entry IR Fibre Management System (FMS)
    10 x Fibre Retention Blocks / FMS Entry Points
    12 x SE MKII Splice Trays fitted with 2 x ANT Splice Bridges
    Metal Connector Plate (96+12Way)
    27 x LC APC Quad Adaptors
    1 x Loop Through Anchor Bracket
    1 x Cable Entry Seal Kit (3-14mm range)
    1 x S4/S5 Multi Drop Seal (24 ports x 7mm)
    1 x Wall Mounting Kit
    PART DESCRIPTION MDU-S5C-L10C2-05A
    Product Family Fibre Optic External/Internal Enclosure
    Product Group S5 Series MDU/MBU Enclosures
    Qty Trays 12
    Short Description MDU S5 Connectorised with 12 SE MKII ANT trays - 96 LC/APC connections (+12 spares)
    Specific to German NE4 In-Building Network
    Technical Description The largest MDU enclosure is 568 x 375 x 165mm (H x W x D) and manufactured in light grey (RAL 7035) ABS (Acrylonitrile Butadiene Styrene), UV stable with an IP54, IK08 and V0 rating.
    The MDU S5 cover can be customised with a moulded or labelled customer logo.

    The S5 C (Connectorised) can be configured with the standard top entry IR Fibre Management System (FMS) which accommodates 12 SE IR MKII splice trays giving a maximum of 288 ANT splices and up to 6 PLC splitters.
    The metal connector plate holds 24+3 LC APC Quads and is fitted on the right side of the FMS.
    The 10 red retaining blocks guide the fibre elements onto the FMS and their foam pads can be cut through to accommodate a range of fibre counts.
    A loop through anchor bracket is pre-fitted on the left port of the base. The dual outlet of the bracket allows for loop through applications. The black rubber seals cover a cable range of 3-14mm OD cable.
    One multi-drop seal (24 x 7mm drops) is pre-fitted on the right port of the base.

    An extensive range of optional accessories is available upon request and include lock, multi-drop seals (24 x 7mm), M20 and M25 cable glands (up to 18mm), loop through anchor kit, drop cable anchor brackets, SC or coloured splice trays, splitter holders for trays, internal or external loop storage baskets.
    Type MDU-S5C-L10C2-05A
    Variant Indoor/Outdoor Enclosure
    Depth (D) 165mm
    Height (H) 568mm
    Width (W) 247mm
    IP-Rating IP54
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026791999
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
