MDU S5 Splice Only with 24 Compact SE MKII 3A trays for 576 horizontal splices
Art.-No. 857-03132 | MDU-S5S-C08A1 |

Copied

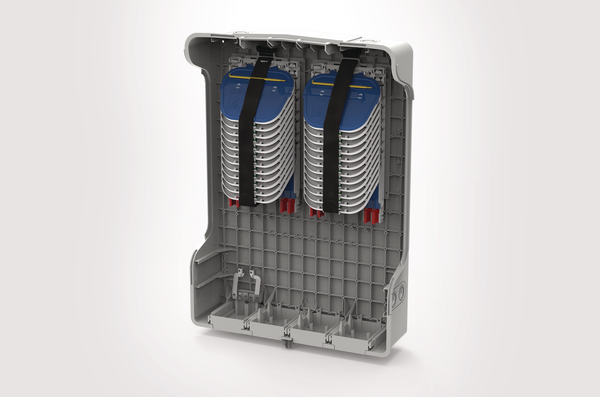

MDU - S5S Splice Only closure.
MDU - S5 shown with lid and optional lock.
MDU - S5 (front view)
MDU - S5 (side view)

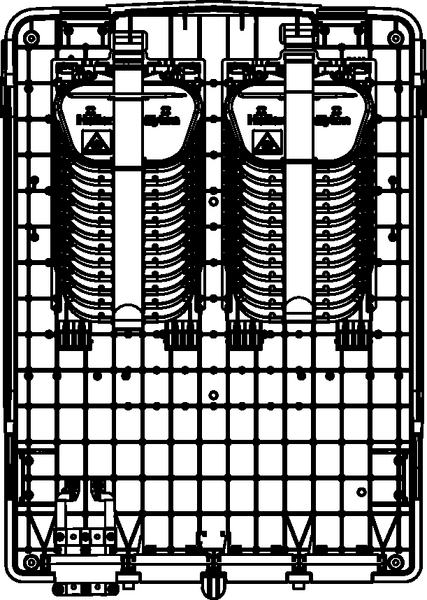

MDU - S5S shown in base view.

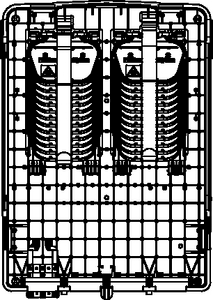

MDU - S5S closure.

    • Maximum 576 Fibre Splices
    • 2xCompact IR Fibre Management Systems (FMS)
    • 24 Compact SE Trays with 3A Splice Bridges
    • 8 FMS cable entry points
    • Fitted Loop Through Anchor Gland
    • Optional MDU Accessories
    • IP54/IK08
    • UV Stable / UL-94 V0 Rating
    Add to watchlist
    Downloads
    Application Designed for deployment within the last mile of the FTTx network. This enclosure can be used within a Point to Point (P2P) or Point to Multi Point (P2MP) with the addition of PLC splitters, connectorised or bare end, pigtails and adaptors.
    Colour Light Grey (LTGY)
    Content MDU S5 enclosure
    2 x Compact IR Fibre Management Systems (FMS)
    8 x Fibre Retention Blocks / FMS Entry Points
    24 x SE MKII Splice Trays fitted with 2 x 3A Splice Bridges
    1 x Loop Through Anchor Bracket
    1 x Cable Entry Seal Kit (3-14mm range)
    1 x Wall Mounting Kit
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION MDU-S5S-C08A1
    Package Content 1
    Package Content packed in EA
    Product Family Fibre Optic External/Internal Enclosure
    Product Group S5 Series MDU/MBU Enclosures
    Qty Trays 24
    Short Description MDU S5 Splice Only with 24 Compact SE MKII 3A trays for 576 horizontal splices
    Splice Capacity 576
    Technical Description The largest MDU enclosure is 568 x 375 x 165mm (H x W x D) enclosure and manufactured in light grey (RAL 7035) ABS (Acrylonitrile Butadiene Styrene), UV stable with an IP54, IK08 and V0 rating.
    The MDU S5 cover can be customised with a moulded or labelled customer logo.

    The S5 S (Splice Only) can be configured with 2 compact IR Fibre Management Systems (FMS) which accommodate 24 SE IR MKII splice trays giving a maximum of 576 3A splices and 4 PLC splitters in the FMS block.
    The 8 red retaining blocks guide the fibre elements onto the FMS and their foam pads can be cut through to accommodate a range of fibre counts.
    A loop through anchor bracket is pre-fitted on the left port of the base. The dual outlet of the bracket allows for loop through applications. The black rubber seals cover a cable range of 3-14mm OD cable.

    An extensive range of optional accessories is available upon request and include lock, multi-drop seals (24 x 7mm), M20 and M25 cable glands (up to 18mm), loop through anchor kit, drop cable anchor brackets, SC or coloured splice trays, splitter holders for trays, internal or external loop storage baskets.
    Type MDU-S5S-C08A1
    Type of Tray Integrated Routing SE, 250µm
    Variant Indoor/Outdoor FTTx Enclosures
    Depth (D) 165mm
    Height (H) 568mm
    Width (W) 247mm
    IP-Rating IP54
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026792255
    Packaging 1 - Height (m) 0.17m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Volume (m³) 0.03876m³
    Packaging 1 - Weight (kg) 4.18kg
    Packaging 1 - Width (m) 0.38m
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
