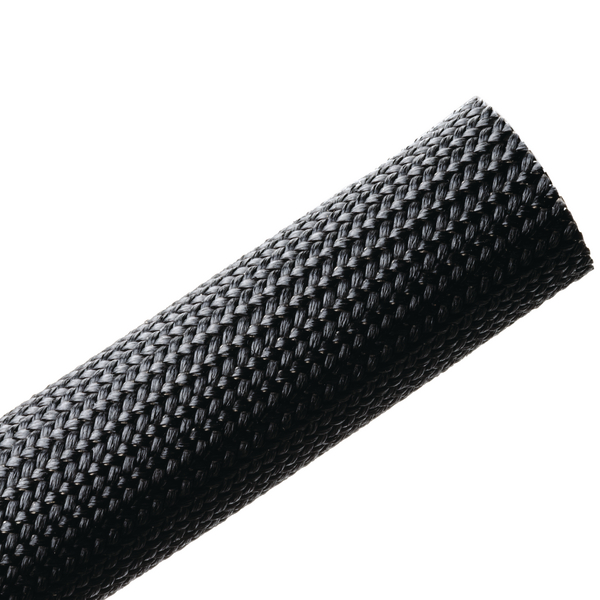

Resin Saturated Fiberglass-High Temperature
Art.-No. 170-03061 | BSHTFG100-GF-BK Details

  • An extremely tough sleeving material which provides thermal protection up to 648 °C (1,200°F)
  • Sturdy construction maintains its tight structure under extreme shaking, scraping, pressure and varying temperature conditions
  • Cuts easily with ordinary scissors for easy application
  • UL VW-1 flammability rating for use in conditions requiring a very high degree of flame resistance
Colour Black (BK)
Description An extremely high-temperature resistant sleeving designed to protect wires and cables subjected to continuous temperature variations, vibration, abrasion, and mechanical stress.
Material Glass-fibre (GF)
Open, post termination (Yes/No) No
Pack Cont. 7.62m
Package Content packed in reel
PART DESCRIPTION BSHTFG100-GF-BK
Product Group Resin Saturated Fiberglass-High Temperature
Short Description Resin Coated Fiberglass Sleeving, 1.0" Dia., Black, 25.0 ft/Standard Reel
Bundle ∅ max. 41.3mm
Bundle ∅ min. 2.54mm
Diameter (D) 25.4mm
Length (L) 7.62m
Nominal ∅ 25.4mm
Nominal ∅ 1"
Wall (WT) 0.057"
Wall (WT) 1.45mm
∅ D 1.0"
Abrasion Resistance Very high
CE Certification No
CSA Certified No
Flammability UL VW-1
Halogenfree Yes
Melting Point +2048 °F (1120 °C)
Operating Temperature - °C -70 °C to +650 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number E329694
Country of Origin MX
GTIN-13 / EAN 4031026436548
Packaging 1 - Weight (kg) 1.2kg
Reel Length 25.0ft
Reel Length 7.6m
ETIM 7.0 Key EC001182
UNSPSC Key 39131602
