11/05/2021

PET-Flame Retardant : BSPFR140B

Article number: 170-03090

Features

  • Treated polyester material contains a combustion inhibitor for use in applications where flame retardancy is required
  • Braided design allows sleeving to expand by 150% to accommodate variations in wire bundle and eases installation

Certifications & Approvals

Colour Black (BK)

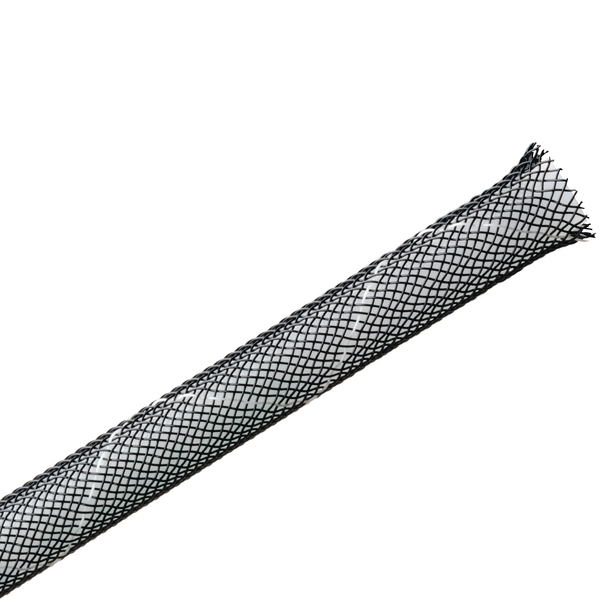

Description A flame retardant woven (threaded) polyester sleeving that is resistant to cuts and abrasion, and contains a combustion inhibitor allowing it to achieve a UL and CSA flame resistance rating of VW-1. Contains white tracer thread for easy identification.
Open, post termination (Yes/No) No
Pack Cont. 304.80m
Package Quantity per reel
PART DESCRIPTION BSPFR140B-PET-BK
Product Group PET-Flame Retardant
Short Description Flame Retardant Expandable Braided Sleeving, 0.25" Dia., Black, 1000.0 ft/Bulk Reel
Bundle ∅ max. 11.1mm
Bundle ∅ min. 3.2mm
Diameter (D) 6.4mm
Length (L) 304.8m
Nominal ∅ 6.4mm
Nominal ∅ 0.25"
∅ D 0.25"
Abrasion Resistance Medium
CE Certification No
CSA Certified No
Flammability Mil-202, FAR 25, FMVSS 302, UL VW-1
Halogenfree Yes
Material Polyester (PET)
Melting Point +250 °C
Operating Temperature - °C -70 °C to +125 °C
Specifications
Specifications UL 94 VW-1
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number E147924
GTIN-13 / EAN 4031026442129
Packaging 1 - Weight (kg) 1.1kg
Reel Length 1000.0ft
Reel Length 304.8m
ETIM 6.0 EC001182
ETIM 7.0 Key EC001182
UNSPSC Key 39131602
