BSPSW100-PET-BK : BSPSW100
Art.-No. 170-03215 | BSPSW100-PET-BK |  Details

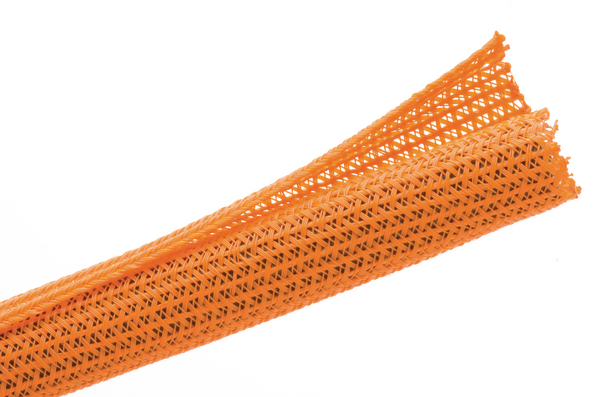

Expandable braided sleeving enlarges up to 150% of nominal diameter to accommodate irregular shapes.

    • Split wrap design installs quickly, saving assembly time and future accessibility without disassembly
    • Unique construction retains shape and rigidity throughout unrolling
    • Easy open design allows quick assembly, future access, and ability to apply protective sleeving post assembly or post installation situations
    Package size
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Description A lateral split, semi-rigid and flame retardant braided sleeving configuration used when ease of installation and repeat access to wire bundle is required. The lateral split allows the sleeving to open and accommodate a variety of bundling requirements. The 25% edge overlap rolls back over connectors and splices without exposing the bundled wires.
    Material Polyester (PET)
    Open, post termination (Yes/No) No
    Pack Cont. 3.05m
    Package Content packed in pack
    PART DESCRIPTION BSPSW100-PET-BK
    Bundle Diameter max (metric) 25.4mm
    Bundle ∅ 2.54-25.4mm
    Bundle ∅ min. 2.54mm
    Diameter (D) 25.4mm
    Length (L) 3.05m
    Nominal ∅ 25.4mm
    Nominal ∅ 1"
    ∅ D 1.0"
    Abrasion Resistance Medium
    CE Certification No
    CSA Certified No
    Flammability UL 94 V0
    Halogen-free Yes
    Melting Point +250 °C
    Operating Temperature -70 °C to +125 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL-File Number E147924
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026617305
    Packaging 1 - Weight (kg) 0.296kg
    Reel Length 3.05m
    Reel Length 10.0ft
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    UNSPSC Key 39131602
