28/05/2022

BSPSW1120B-PET-BK : BSPSW1120B
Art.-No. 170-03130 | BSPSW1120B-PET-BK Details

  • Split wrap design installs quickly, saving assembly time and future accessibility without disassembly
  • Unique construction retains shape and rigidity throughout unrolling
  • Easy open design allows quick assembly, future access, and ability to apply protective sleeving post assembly or post installation situations
Colour Black (BK)

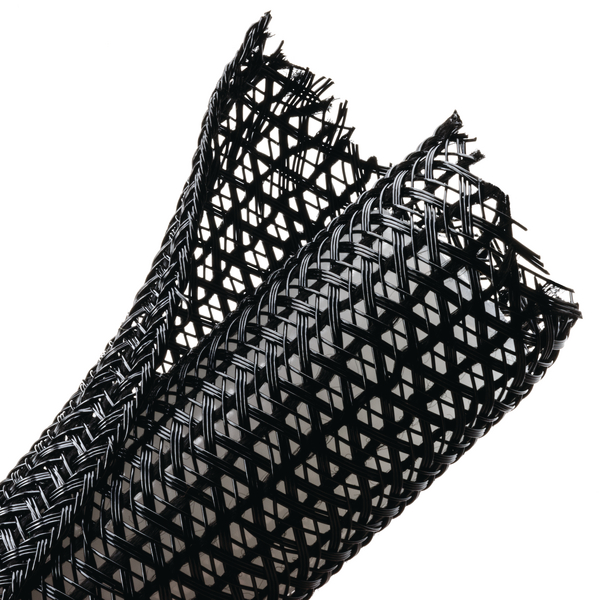

Description A lateral split, semi-rigid and flame retardant braided sleeving configuration used when ease of installation and repeat access to wire bundle is required. The lateral split allows the sleeving to open and accommodate a variety of bundling requirements. The 25% edge overlap rolls back over connectors and splices without exposing the bundled wires.
Material Polyester (PET)
Open, post termination (Yes/No) No
Pack Cont. 22.86m
Package Content packed in box
PART DESCRIPTION BSPSW1120B-PET-BK
Short Description Split Wrap Braided Sleeving, 1.50" ID, PET, Black, 75.0 ft/Bulk Reel
Bundle ∅ max. 38.1mm
Bundle ∅ min. 2.54mm
Diameter (D) 38.1mm
Length (L) 22.9m
Nominal ∅ 38.1mm
Nominal ∅ 1.5"
Wall (WT) 0.038"
Wall (WT) 0.97mm
∅ D 1.5"
Abrasion Resistance Medium
CE Certification No
CSA Certified No
Flammability UL 94 V0
Halogenfree Yes
Melting Point +250 °C
Operating Temperature - °C -70 °C to +125 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number E147924
Country of Origin US
GTIN-13 / EAN 4031026443652
Packaging 1 - Weight (kg) 0.95kg
Reel Length 75.0ft
Reel Length 22.9m
ETIM 7.0 Key EC001182
UNSPSC Key 39131602
