FDN 16 port B length tubed closure with 24 SMF SE-A trays
Art.-No. 857-01026 | FDNTB-BXXAH4X |

Copied
FDN 16 Port B-Length Closure
Base port and cable size configurations.

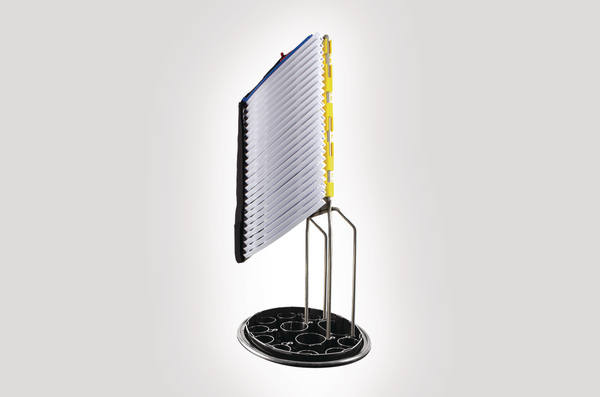

FDN 16 port base showing different ports
FDN B-Length Closure Cover

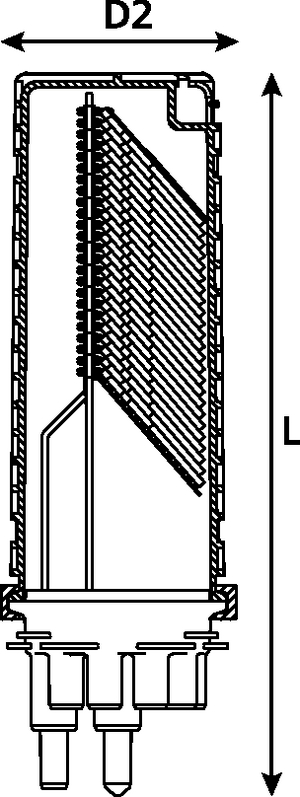

FDN 16 Port Base B-Length Closure
FDN 16 Port Base Configuration

    • Maximum 576 fibre splice capacity
    • 15 round ports and 1 oval port
    • Moulded supports allow the cover to be removed whilst closure is in-situ
    • Fixing points for external cable management attachments
    • Supplied with 24 SMF SE-A Trays
    • Maximum 24 splices per tray
    • Splitter accommodation
    • Cablelok compatible for all port sizes
    • Quick release cover
    • Optional flash test valve and/or grounding feed through
    Add to watchlist
    Downloads
    Colour Black (BK)
    Content FDN 16 Port Base
    B-Length Cover (Dome)
    Quick Release Clamp
    Sealing ‘O’ Ring
    Tray Support Frame
    Anchor Fixing Kit (3)
    24 x SMF SE-A 3A Splice Trays
    Tray Tool
    Hook and Loop Securing Strap
    Transportation Tubing
    Tubefix – Tube to Tray Securing Blocks
    Hook and Loop Management Ties
    Isopropyl Alcohol Wipes
    Desiccant
    Installation Guides
    Marker Kit
    Red Marker 1 – 25
    Green Marker 1 – 25
    Cover Type B
    Method of Sealing Cablelok, Heatshrink
    PART DESCRIPTION FDNTB-BXXAH4X
    Package Content packed in kit
    Port L, T, B, S
    Port count 1, 2, 4, 9
    Product Family B Length
    Product Group FDN 16 Port Tubed Closure
    Qty Trays 24
    Short Description FDN 16 port B length tubed closure with 24 SMF SE-A trays
    Splice Capacity 576
    Technical Description The FDN 16 Port B Length closure is supplied with a Polypropylene base. The base configuration of 15 round ports and 1 oval port covers a cable diameter range of 4.8 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The moulded supports on the base allow the cover to be removed from the closure whilst it is still in-situ. Bosses moulded in to the closure base enable fixing of external cable management attachments.
    The mounting system is manufactured from Grade 304 stainless steel and the backplane is an aluminium extrusion which manages 24 SMF SE-A 3A trays which have moulded splice protector holders.
    The tube closure and the position of the mounting system allow for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system.
    Type FDNTB-BXXAH4X
    Type of Tray Hellipse SMF SE-A
    Variant Outdoor FTTx Enclosures
    D1 312mm
    D2 222mm
    Length 663mm
    Length (L) 663mm
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660133404
    Packaging 1 - Height (m) 0.72m
    Packaging 1 - Length (m) 0.32m
    Packaging 1 - Qty 1
    Packaging 1 - Type box
    Packaging 1 - Volume (m³) 0.073728m³
    Packaging 1 - Weight (kg) 7.20kg
    Packaging 1 - Width (m) 0.32m
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
