FDN 59 port C length tubed closure with basket and 36 x NZDF SE-A 3A splice trays
Art.-No. 857-00663 | FDNTB-CXBCD61 |

Copied
FDN 59 Port C-Length Closure with basket.
Base port and cable size configurations.

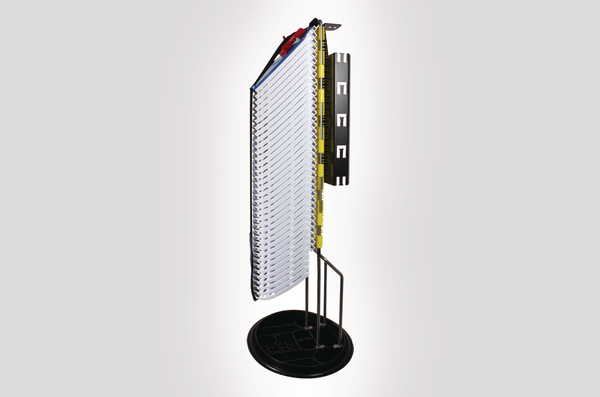

FDN 59 Port C-Length Closure with basket
FDN 59 port base showing different ports
FDN C-Length Closure Cover

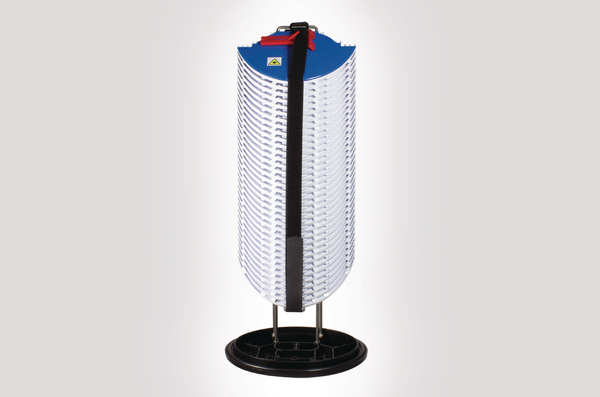

FDN 59 Port Base C-Length Closure with basket
FDN 59 Port Base Configuration
FDN with basket, cover and clamp (top view)

    • Maximum 432 fibre splice capacity
    • 58 round ports and 1 oval port
    • Fibre storage basket for loop through applications
    • Supplied with 36 NZDF SE-A Trays fitted with 2 x 3A (Green) splice protector inserts
    • Maximum 12 splices per tray
    • Splitter accommodation
    • Cablelok compatible for all port sizes
    • Quick release cover
    • Optional flash test valve and/or grounding feed-through
    Add to watchlist
    Downloads
    Colour Black (BK)
    Content FDN 59 Port Base
    C-Length Cover (Dome)
    Quick Release Clamp
    Sealing ’O’ Ring
    Fibre Storage Basket
    Tray Support Frame
    Anchor Fixing Kit (3)
    36 x NZDF SE-A 3A Splice Trays
    Tray Tool
    Hook and Loop Tray Securing Straps
    Transportation Tubing
    Tubefix – Tube to Tray Securing Blocks
    Hook and Loop Management Ties
    Isopropyl Alcohol Wipes
    Desiccant
    Installation Guide
    Marker Kit
    Red Marker 1 – 48
    Green Marker 1 – 48
    Cover Type C
    Method of Sealing Cablelok, Heatshrink
    PART DESCRIPTION FDNTB-CXBCD61
    Package Content packed in kit
    Port L, T, S, B, R
    Port count 1, 2, 4, 2, 52
    Product Family C Length with Basket
    Product Group FDN 59 Port Tubed Closure
    Qty Trays 36
    Short Description FDN 59 port C length tubed closure with basket and 36 x NZDF SE-A 3A splice trays
    Splice Capacity 432
    Technical Description The FDN 59 Port C Length closure with basket is supplied with a Polypropylene base. The base configuration of 58 round ports and 1 oval port covers a cable diameter range of 1.7 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink.
    The mounting system is manufactured from Grade 304 stainless steel and the backplane is an aluminium extrusion which manages 36 NZDF SE-A 3A Splice Trays.
    The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays and the basket provides storage space for the storage of fibre loops. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system.
    Type FDNTB-CXBCD61
    Type of Tray Hellipse NZDF SE-A
    Variant Outdoor FTTx Enclosures

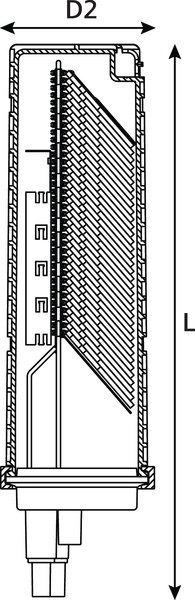

    D1 312mm
    D2 222mm
    Length 789mm
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660112775
    Packaging 1 - Height (m) 0.318m
    Packaging 1 - Length (m) 0.858m
    Packaging 1 - Qty 1
    Packaging 1 - Type box
    Packaging 1 - Volume (m³) 0.090311364m³
    Packaging 1 - Weight (kg) 8.2kg
    Packaging 1 - Width (m) 0.331m
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
