FAP6DMMQLC

1U Multimode Panel, Article number: 855-04230

Features

  • Sliding Panels for easy access when terminating
  • On board Fibre Optic Management (FOM)
  • Multiple cable entry options and securing points
  • Available in Quad (96 fibre) and Duplex (48 fibre)
  • Also available in single mode
  • Supplied with Rack Snap mounting fixings
Colour Aquamarine (AE)
Connector Type LC

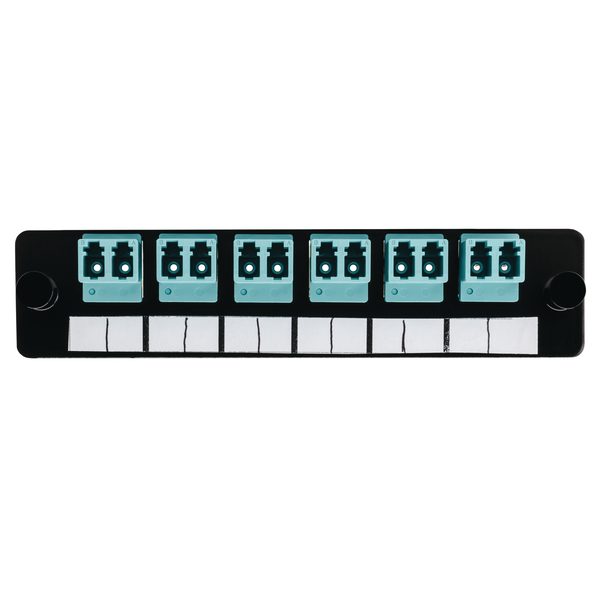

Description ADAPTER PANEL-12 LC MM OM3/4
GLOBAL PART NAME (auto set) FAP6DMMQLC
Pack Cont. 1
Performance Category Multimode
Port count 12
Product Family 1U Multimode Panel

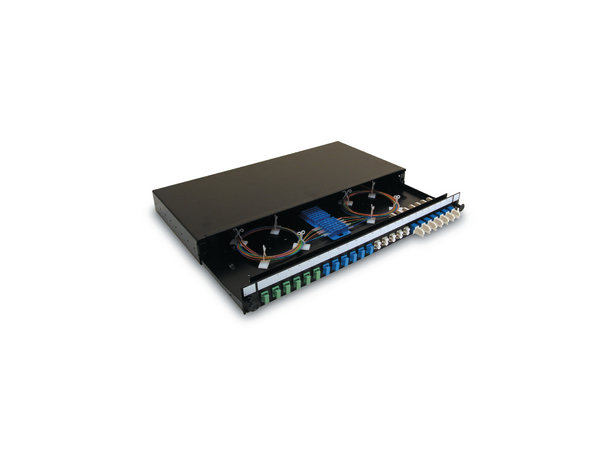

Technical Description The LC Multimode Fibre Panel presents up to a maximum of 96 LC fibres (using LC Quad Adaptors) in 1U of space. The 1U sliding drawer can be locked into position using two simple to operate catches. When fully extended the drawer is designed to lower to 45° giving access to the panel. The drawer can also be locked to a lower maximum of 10°, providing the perfect working platform during installation and maintenance, by sliding the drawer sideways. The rear drawer offers a number of cable options including 4 x 10mm and 2 x 20mm gland holes and has a removable section in the centre for specialist cables and patch leads. In addition the base of the tray has cable securing points and cable management holes for securing Fibre Optic Management (FOM). Adjustable mounting ears allow the panel to be positioned within the rack or frame.
Depth (D) 200mm
Height (H) 29.0mm
Length (L) 129.3mm
Width (W) 28.96mm
Optical Performance Multimode
Dimensions W x H x D 28.96 mm x 29.0 mm x 200 mm
UNSPSC Key 43223323
