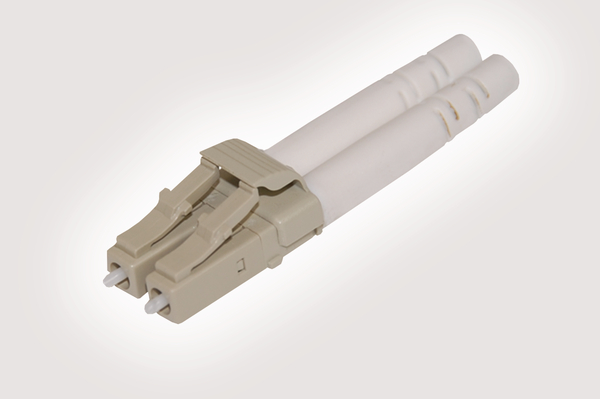

Multimode LC Duplex Connector
Art.-No. 855-10041 | FBCMMBG-LCXXDX-3.0WH

Factory-polished zirconia ceramic ferrules for quick and reliable field installations.
Unique wedge clip retains connector shape for precision connection.
Easy to use- no epoxy, heat curing, polishing or special tools required.
Color coded for easy identification.
Meet ANSI/TIA/EIA 568-B standards.
Meet ANSI/TIA/EIA 604 (FOCIS) connector interface requirements.

More products in this product group:

Application	• IEC 874-14 Standard Compliant • 25 Year System Warranty
Color	Beige (BGE)
Description	Pre-polished connectors provide high performance and eliminate the need for the time consuming task of hand polishing ferrules in the field. A factory pre-cleaved fiber stub and index-matching gel combine to offer an immediate low loss termination of single mode or multimode fiber.
PART DESCRIPTION	FBCMMBG-LCXXDX-3.0WH
Part No.	855-10041
Technical Description	The Multimode LC Duplex Connector features a latched lever mechanism which provides secure mating to the adaptor. The connectors are supplied in individual bags including the connector, dust cover and a 3.0mm boot. All fibre adaptors and connectors comply with the IEC874-14 standard ensuring inter-operability.
Type	FBCMMBG-LCXXDX-3.0WH
