Available individually “without cable ties” only as consumables for the ATS flex.

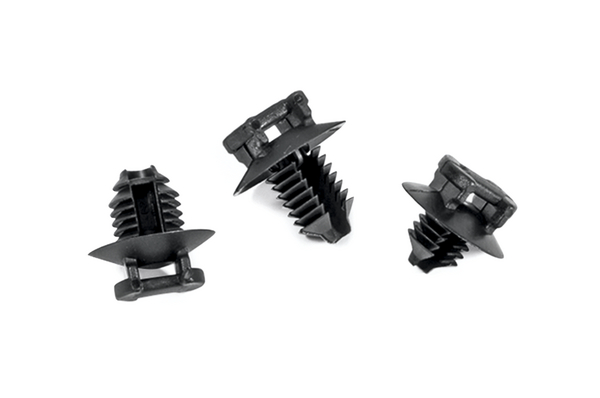

Cable tie mount, T=0.6-6.75mm, ⌀6.2 x 12.2 mm/6.5 x 12.5 mm, black, 5000pcs.

Art.-No. 102-67073

| ATS-FTOVAL12.5A-PA66HIRHS-BK

|

Clips to fix cables and harnesses in the automotive and white goods industries
Optimized for use automatic cable tying systems
Easy to apply
The fixing elements can be tied automatically with Autotool System

Add to watchlist

Downloads

More products in this product group:

Automatic bundling

Base Data

Colour	Black (BK)
Fixation Method	with Fir Tree (Mounts)
Internet Customer Notice	Available individually “without cable ties” only as consumables for the ATS flex.
Key product features	products for automatic tools
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	ATS-FTOVAL12.5A-PA66HIRHS-BK
Package Content	5000pcs.
Package Content packed in	bag
Product Family	Fir tree clips for automatic cable tying systems
Product Group	Automatic bundling
Short Description	Foot sections with a slat geometry specially designed for use with an ATS 3080 or ATS flex autotool.
Type	ATS-FTOVAL12.5A

Product Dimensions

Height (H)	24.82mm
Length (L)	23.63mm
Panel Thickness	0.6-6.75mm
Width (W)	17.63mm
for Hole ⌀ (FH)	6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
for Panel Thickness min - max	0.6 - 6.8 mm

Specifications

Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	CN
GTIN-13 / EAN	4031026651378

More Information

ETIM 7.0 Key	EC000449
ETIM 8.0 Key	EC000449
ETIM 9.0 Key	EC000449
UNSPSC Key	39121717
