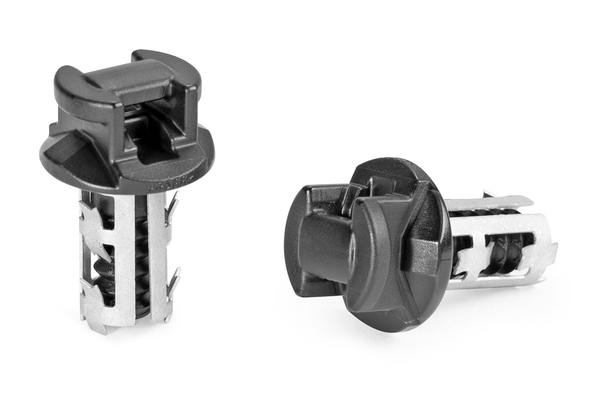

Cable tie mount for hole (round)/for threated holes, Wmax=5.0mm, black, 2.000pcs.
Art.-No. 151-03827 | ATSDHA8X15-PA66HIRHS/ST-BK |

Copied

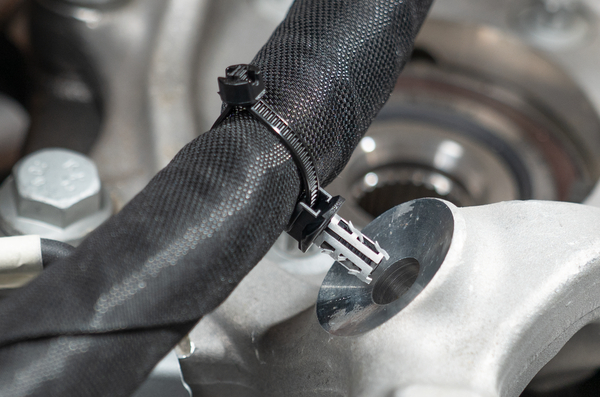

Fixing element with deep hole anchor for atuomatic cable tie systems

    Add to watchlist
    Downloads
    Colour Black (BK)
    Key product features products for automatic tools
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Steel (ST)
    PART DESCRIPTION ATSDHA8X15-PA66HIRHS/ST-BK
    Package Content 2.000pcs.
    Releasable Closure (Yes/No) No
    Type ATSDHA8X15
    Weight/Unit 0.001359kg
    Bundle ⌀ 80.0mm
    Bundle ⌀ max. 80.0mm
    Height (H) 21.6mm
    Strap Width max. (G) 5.0mm
    ELV compliant (Article 4 - 2) YES
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    PFAS-free No - alternative under development
    ROHS compliant Yes
    Reusable (Yes/No) No
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026763989
    Packaging 1 - Height (m) 0.06m
    Packaging 1 - Length (m) 0.42m
    Packaging 1 - Qty 2000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.007938m³
    Packaging 1 - Weight (kg) 2.739815kg
    Packaging 1 - Width (m) 0.315m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 14.299075kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 240000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 364.2kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121703
