21/09/2026

DHDM6-2-PA66HIRHS-BK


Art.-No. 151-03452

| DHDM6-2-PA66HIRHS-BK

 |

Copied
DHDM (Double heavy duty mount) for parallel routing of bundles.
DHDM with cable tie (L = length of the tie

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Mounting Screw Type M6 Screw
    PART DESCRIPTION DHDM6-2-PA66HIRHS-BK
    Package Content 3000pcs.
    Package Content packed in carton
    Type DHDM6-2

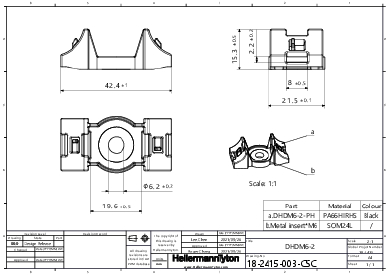

    Height (H) 15.3mm
    Length (L) 42.4mm
    Width (W) 21.5mm
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026664323
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717

    Solutions

    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.

    Cable tie mounts
    Art.-No.: 151-03452 Contact
