Cable tie mount for stud, Wmax=13.2mm, ⌀15.9 mm, black, 900pcs.
Art.-No. 151-00976 | HM6A-PA66HIRHSUV-BK

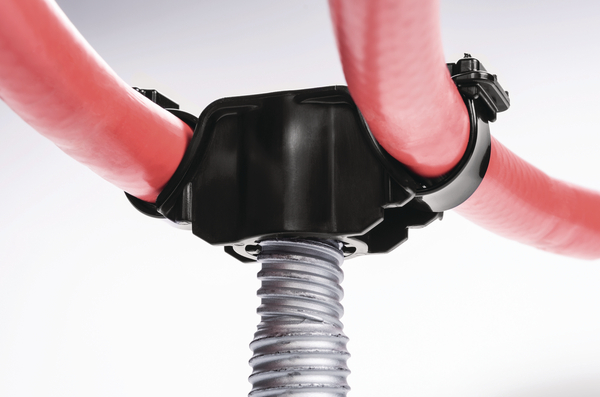

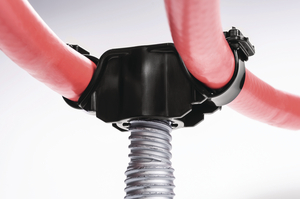

H-Mounts utilize existing frame rail bolts eliminating the need for additional fasteners.
When used with cable ties, the H-Mounts eliminate the need to carry multiple sizes of fixed bundle diameter clamps which reduces inventory and purchasing costs.
Top tie slot allows bundles to be positioned in up to three locations, to provide multiple use options.
Side tie slots are are curved to minimize bundle abrasion and position the bundles adjacent to the bolt yet away from the frame.

More products in this product group:

Brand Family	HM-Series
Color	Black (BK)
Description	HellermannTyton H-Mounts offer a secure bundling solution that utilizes existing frame rail bolts which reduces component costs and improves installation time. The H-mounts have three bundle mounting locations each accommodating ties up to 1/2" wide. H-Mounts fasten with three bolt sizes: 1/2", 5/8", and 3/4". The top tie slot allows the bundle to be positioned directly over the bolt. The two curved tie slots on the sides position the bundles adjacent to the bolt yet away from the frame.
PART DESCRIPTION	HM6A-PA66HIRHSUV-BK
Packaging Type	pack
Part No.	151-00976
Product family	H Mounts
Product family	Products to use on studs, Products for parallel/multiple routing
Short Desc.	H-Mount for 0.625" standard bolts and Huck-Spin bolts, PA66HIRHSUV, Black, 900/pkg
Type	HM6A
UV Resistant	Yes

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Material	PA66HIRHSUV
Material	Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Operating Temperature	-40°F to +221°F (-40°C to +105°C)
Prop65 Warning	No
REACH Conformity	Yes
ROHS compliant	Yes
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Customs Number (Schedule B)	3926909988
Harmonized Tariff Schedule Code	3926.90.9989
Pkg. Qty.	900
Pkg. Qty.	900Pieces
