Cable tie mount for hole (round), Wmax=5.0mm, T=3.4mm, ⌀6.3 mm, white, 1000pcs.
Art.-No. 151-00328 | TM1SF-PA66-WH

Copied
The low profile style head is ideal for space constrained areas and is easily inserted through a pre-drilled hole.
The low profile style head is ideal for space constrained areas and is easily inserted through a pre-drilled hole.
The low profile style head is ideal for space constrained areas and is easily inserted through a pre-drilled hole.
TM1SF for secure fixing of cables into pre-drilled or pre-punched holes.
TM1SF Fixing Base
TM1SF Fixing Base
The low profile style head is ideal for space constrained areas and is easily inserted through a pre-drilled hole.
The low profile style head is ideal for space constrained areas and is easily inserted through a pre-drilled hole.
SFC

    • Push Mounts, when used with standard cable ties, provide a permanent bundling solution.
    • The low profile style head is ideal for space constrained areas and is easily inserted through a pre-drilled hole.
    Package size
    Add to watchlist
    Downloads
    Application Offering simple and easy methods of securing cables or pipes, these fixing accessories have many applications within a wide range of industries.
    Brand Family TM1SF-Series
    Color White (WH)
    Description HellermannTyton push mounts are used with our standard cable ties and offer a permanent bundling solution for quick installation by pushing the mount through a pre-drilled hole. The low profile head is suitable in space constrained areas.
    PART DESCRIPTION TM1SF-PA66-WH
    Packaging Type pack
    Part No. TM1SF10M4
    Short Desc. Push-Button Cable Tie Mount, 0.25" Hole Dia, 0.13" Max Panel, 0.2" Max Tie Width, PA66, White, 1000/pkg
    Type TM1SF
    UV Resistant No
    Cable Ties T18 - T50
    Fixation Method Arrowhead

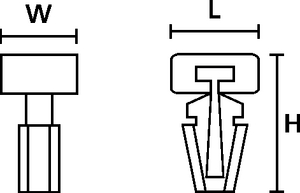

    Height (imperial) 0.61"
    Height (metric) 15.6mm
    Height 2 (imperial) .18"
    Height 2 (metric) 4.60mm
    Length (imperial) 0.4"
    Length (metric) 10.2mm
    Max. Cable Tie Width (imperial) 0.2"
    Max. Cable Tie Width (metric) 5.0mm
    Max. Panel Thickness (metric) 3.40mm
    Min. Panel Thickness (metric) 3.40mm
    Mounting Hole Diameter (imperial) 0.25 "
    Mounting Hole Diameter (metric) 6.3 mm
    Mounting Hole Shape Round
    Panel Thickness (imperial) 0.13"
    Panel Thickness (metric) 3.4mm
    Width (imperial) 0.3"
    Width (metric) 7.6mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V-2
    Material PA66
    Material Polyamide 6.6 (PA66)
    Operating Temperature -40°F to +185°F (-40°C to +85°C)
    Prop65 Warning No
    REACH Conformity Yes
    ROHS compliant Yes
    UL File Number [Logo] E64139 [C_RU_US_62275_Type11]
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US) Yes
    Customs Number (Schedule B) 3926909988
    Harmonized Tariff Schedule Code 3926.90.9989
    Pkg. Qty. 1000
    Pkg. Qty. 1000Pieces
