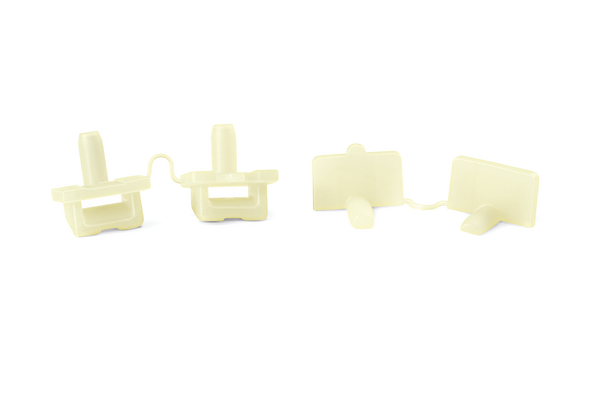

Cable tie mount for hole (round), Wmax=9.3mm, ⌀4.9 - 5.3 mm, natural, 100pcs.
Art.-No. 152-11359 | TY5K3/5-PA66HS-NA

Copied
Cable tie mount for round holes with special designed two wedge footpart for high pull out forces.
Rivet Mount TY5 is usable with a wide variety of our cable ties.
TY5K2 Rivet Mount
TY5K4 Rivet Mount
TY5K3 Rivet Mount
TY5K3/5 Rivet Mount
TY5K1 Rivet Mount
TY5K5 Rivet Mount

    • Quick installation is one of the key features of the TY mounts.
    • Consisting of a two piece 'wedge' the fixing is easily inserted.The special 'diagonal' design of the fixing guarantees a secure installation at all times.
    • Once installed the TY mounts offer a firm fixing for a wide variety of cable ties.
    Add to watchlist
    Downloads CAD-Download
    Application The TY Fixings are ideal for use where a high pull out force is required (eg. in the aircraft industry). The two piece 'wedge' ensures that once installed the mounts will not come away from the panel. Particularly designed for areas with restricted access.
    Brand Family TY5-Series
    Color Natural (NA)
    Description The TY Fixings are ideal for use where a high pull out force is required (eg. in the aircraft industry). The two piece 'wedge' ensures that once installed the mounts will not come away from the panel. Particularly designed for areas with restricted access.
    PART DESCRIPTION TY5K3/5-PA66HS-NA
    Packaging Type pcs.
    Part No. 152-11359
    Short Desc. Handi-Card Wire and Cable Markers, TY5 Series Cabel Tie Rivet Mounts, PA66HS, Natural, 100/pkg
    Type TY5K3/5
    Fixation Method Rivet Mount
    Height (metric) 10.0mm
    Height 2 (metric) 9.5mm
    Length (metric) 18.0mm
    Length 2 (metric) 14.0mm
    Max. Cable Tie Width (metric) 9.3mm
    Max. Panel Thickness (metric) 5.00mm
    Min. Panel Thickness (metric) 1.00mm
    Mounting Hole Diameter (metric) 4.9 - 5.3 mm
    Width (metric) 22.0mm
    Width 2 (metric) 17.0mm
    Flammability UL 94 V-2
    Material PA66HS
    Material Polyamide 6.6 heat stabilized (PA66HS)
    Operating Temperature -40°F to +221°F (-40°C to +105°C)
    REACH Conformity Yes
    ROHS compliant Yes
    Customs Number (Schedule B) 3926909988
    Packaging 1 - Weight (kg) 0.293478kg
    Pkg. Qty. 100
    Pkg. Qty. 100Pieces
