09/08/2025

Gel, Silicone (SI) transparent, 310ml
Art.-No. 435-00838 | Pressgel-SI-CL |

Copied
1-component gel in cartridge.
Particulary suitable for use in overhead installations and in damp or humid enviroments.

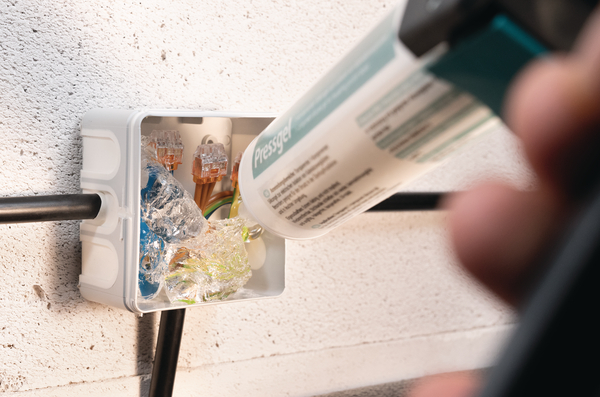

Transparent 1-component silicone gel, highly adhesive and non-dripping for the electrical insulation of junction boxes and electrical components.

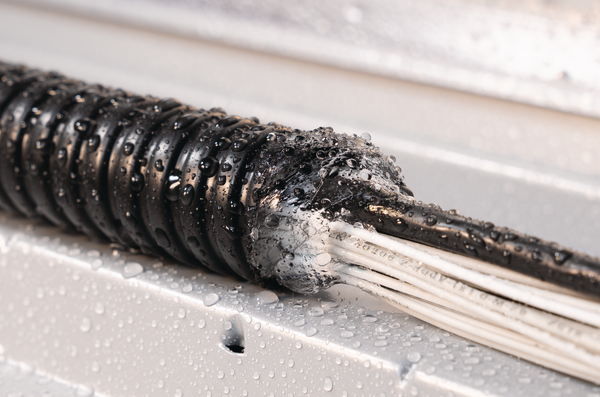

Transparent 1-component silicone gel for sealing corrugated tubes and conduits.

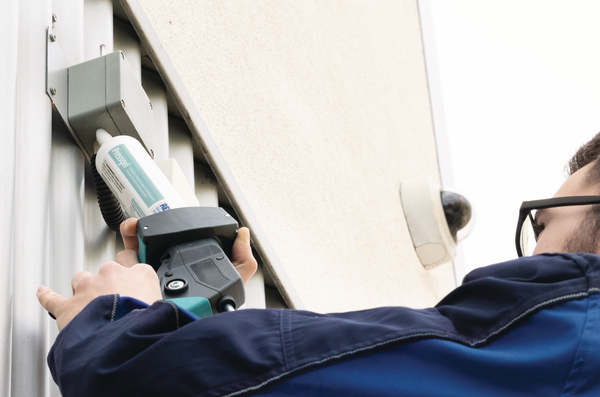

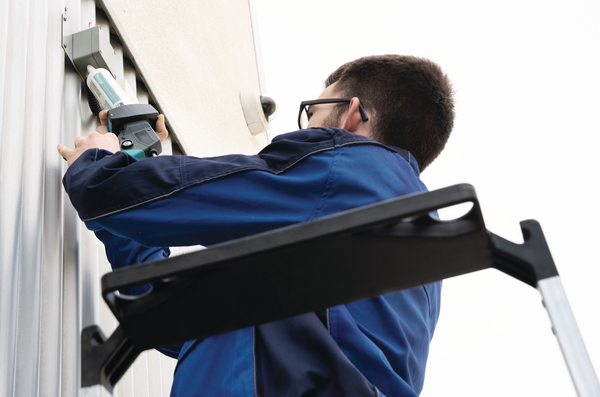

Particulary suitable for use in overhead installations and in damp or humid enviroments.

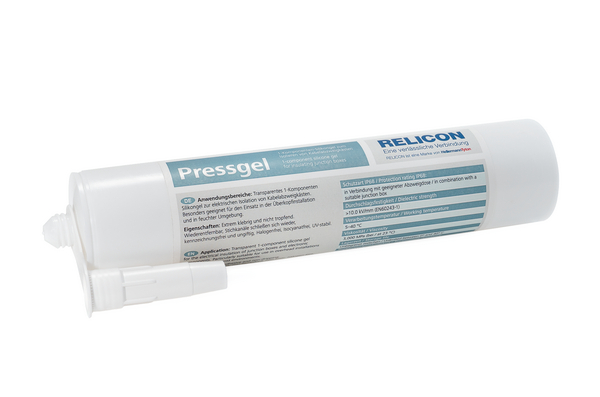

    • Ready-to-use, transparent silicone gel in cartridge
    • Extremely sticky and not dripping
    • Keeps insects away from electrical instaltions
    • IP 68 in combination with appropriate junction box
    • Very strong adhesion makes it suitable for overhead installation
    • Stitch channel closes again, the gel is self-healing
    • Recoverable and removable
    • Resealable cartridge allows multiple use
    • Label-free and non-toxic
    • Halogen free
    • Isocyanate free
    Add to watchlist
    Downloads
    Application Transparent 1-component silicone gel for the electrical insulation of junction boxes and electronic components. Particularly suitable for use in overhead installations and in damp or humid enviroments.For electrical installation up to 1 kV.
    Colour Transparent (CL)
    Key product features vibration absorbing
    Material Silicone (SI)
    PART DESCRIPTION Pressgel-SI-CL
    Package Content 310ml
    Package Content packed in dispenser
    Product Family Relicon 1-component sillicone gel
    Product Group 1-component sillicone gel
    Removable Yes
    Short Description 1-component sillicone gel
    Type Pressgel
    Variant Gel
    Viscosity 3000 mPa*s, 23 °C (EN ISO 2555)
    Weight/Unit 0.34kg
    Flexibility extremely flexible
    Dielectric Strength 20kV/mm
    ELV compliant (Article 4 - 2) YES
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -60 °C to +200 °C
    ROHS compliant Yes
    Shelf Life Unlimited
    Specifications
    Thermal Conductivity (max.) 0.20W/mK
    Thermal Conductivity (min.) 0.17W/mK
    Vibrations absorbing Yes
    Country of Origin IT
    Customs Number 39100000
    GTIN-13 / EAN 4031026638744
    Packaging 1 - Height (m) 0.23m
    Packaging 1 - Length (m) 0.23m
    Packaging 1 - Qty 1
    Packaging 1 - Type pcs.
    Packaging 1 - Volume (m³) 0.0025392m³
    Packaging 1 - Weight (kg) 0.34kg
    Packaging 1 - Width (m) 0.048m
    Packaging 3 - Height (m) 0.25m
    Packaging 3 - Length (m) 0.3m
    Packaging 3 - Qty 24
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0158m³
    Packaging 3 - Weight (kg) 8.66kg
    Packaging 3 - Width (m) 0.21m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 1152
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 436.68kg
    Packaging 4 - Width (m) 0.8m
    Spray content 350g
    Storage Temperature +5 °C to +40 °C
    ETIM 7.0 Key EC001168
    ETIM 8.0 Key EC001168
    ETIM 9.0 Key EC001168
    gel-filled cable joints gel-filled cable joints

    IP68 gel cable connectors

    Innovative RELICON gel cable connectors with IP68 safety class from HellermannTyton

    IP68 gel cable connectors >
    Art.-No.: 435-00838 Contact
