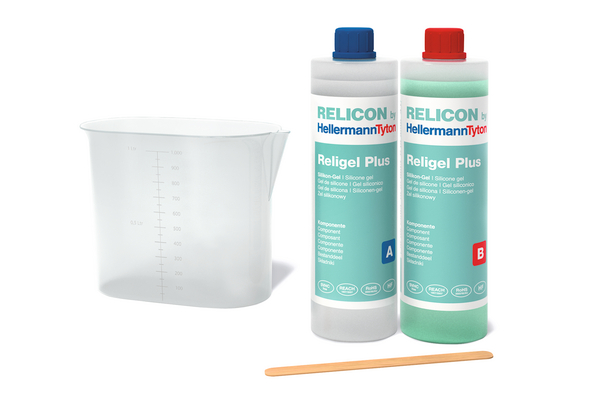

RELICON Religel Plus : Religel Plus 1.000

Two-component silicone gel, Article number: 435-00752

RELICON Religel Plus - Fast curing and heat resistant two-component silicone gel.

Features

  • Timesaving due to fast curing time
  • Stable up to 200 °C
  • Visual control of the homogenous mixture indicated by green-coloured component B
  • Multiple use possible, mixing ratio 1:1
  • Excellent flow and insulating properties
  • Excellent moisture and chemical resistance
  • Soft elastic, vibration absorbing and removable residue-free

Certifications & Approvals

Application

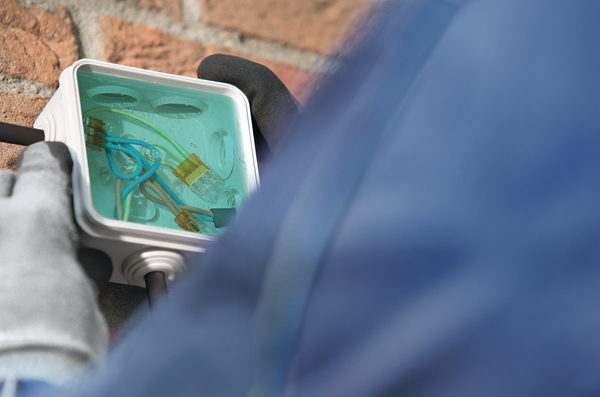

Electrical insulation in low-voltage applications, Encapsulation of cables and wires in junction boxes, Building and household installations, Belowground, submerged

RELICON Religel Plus Fast curing and heat resistant two-component silicone gel is suitable for following markets and industries

  • Electronics Industry Electronics Industry
  • Electrical Installation Electrical Installation
Application 2 individually dosable, quick and easy to handle
Colour Green (GN), Transparent (CL)
Pack Cont. 1000ml
Package Quantity per bottle
PART DESCRIPTION Religel Plus 1.000-SIG-CL/GN
Pot Life 5 min. 23 °C
Product Family RELICON Religel Plus Fast curing and heat resistant two-component silicone gel
Product Group RELICON Religel Plus
Short Description Two-component silicone gel
Viscosity 1000 mPa*s, 23 °C (EN ISO 2555)
Dielectric Strength >25 kV/mm
ELV compliant (Article 4 - 2) YES
Halogenfree Yes
Hazardous good No
Material Silicone gel Religel (SIG)
Operating Temperature - °C -60 °C to +200 °C
Shelf Life Unlimited
Specifications
Specifications IEC 60529; Edition 2.2, 2013-08
EAN / GTIN 4031026599663
Packaging 1 - Height (m) 0.23m
Packaging 1 - Length (m) 0.18m
Packaging 1 - Qty 1
Packaging 1 - Type carton
Packaging 1 - Volume (m³) 0.00393
Packaging 1 - Weight (kg) 1.257001kg
Packaging 1 - Width (m) 0.095m
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 126
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 211.262kg
Packaging 4 - Width (m) 0.8m
Spray Content ETIM 970g
Weight 1.257kg
ETIM 6.0 EC001168
ETIM 7.0 Key EC001168
