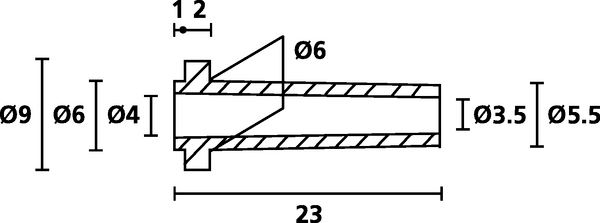

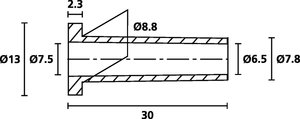

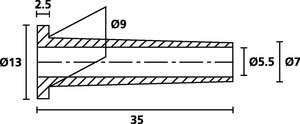

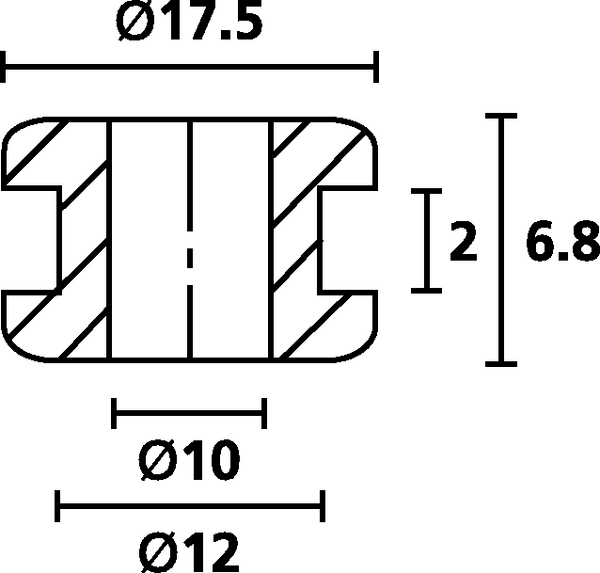

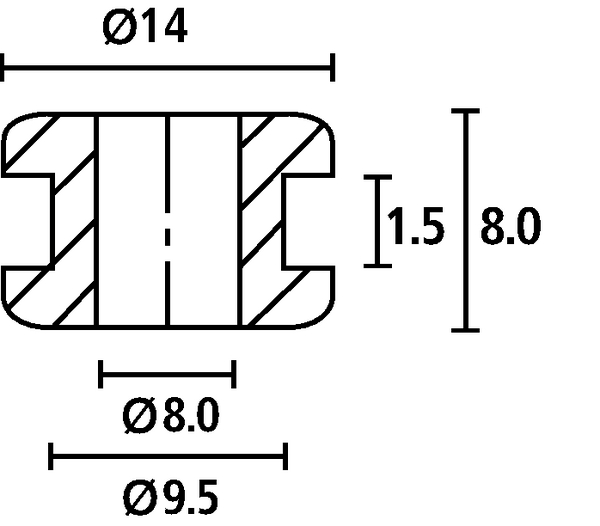

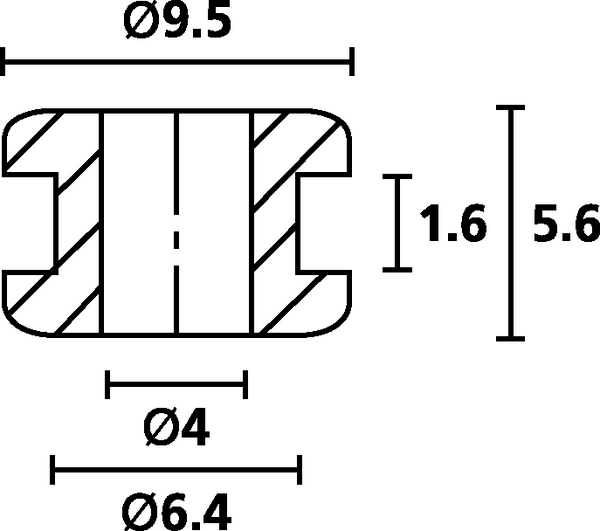

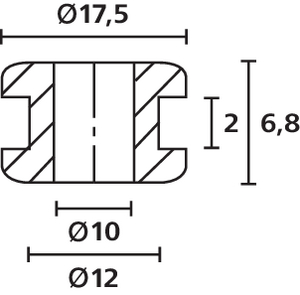

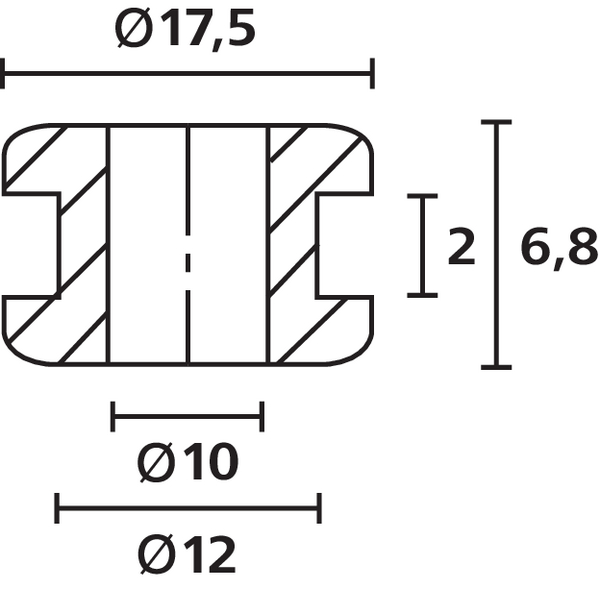

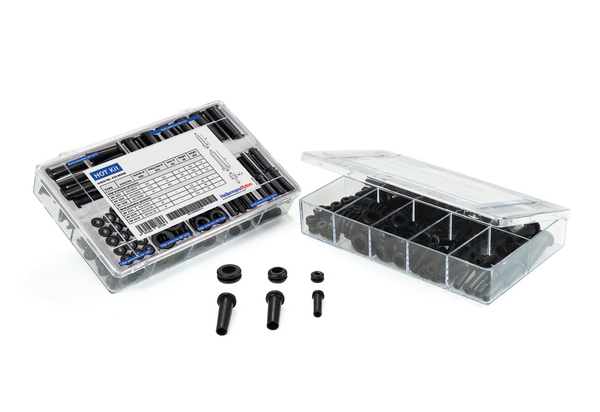

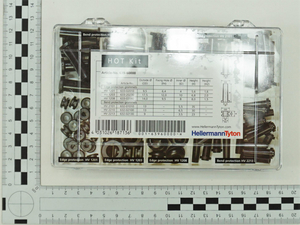

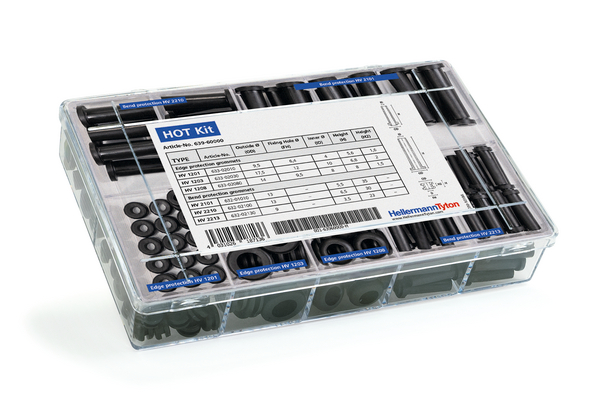

Bend and edge protection grommet set : HOT Kit

Bend and edge protection setArticle number: 639-60000

Features

  • Flexible and easy to apply
  • High resistance to chemicals and environmental influences

Certifications & Approvals

Application

The practical mix of grommets for construction, repairs and home improvement.

Cable ∅ max 12.0mm
Cable ∅ min 3.5mm
Colour Black (BK)
Description Bend and edge protection grommets set
Package Quantity per pcs.
PART DESCRIPTION HOT Kit-PVC-FR-BK
Product Family HOT Kit
Product Group Bend and edge protection grommet set
Short Description Bend and edge protection set
Variant Closed
Shore Hardness A 55±5
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V0
Hazardous good No
Material Polyvinylchloride, flame retardant (PVC-FR)
Operating Temperature - °C -30 °C to +60 °C
Specifications
GTIN-13 / EAN 4031026187136
Packaging 1 - Height (m) 0.033m
Packaging 1 - Length (m) 0.175m
Packaging 1 - Qty 1
Packaging 1 - Type pack
Packaging 1 - Volume (m³) 0.00066
Packaging 1 - Weight (kg) 0.202445kg
Packaging 1 - Width (m) 0.115m
Packaging 2 - Height (m) 0.17m
Packaging 2 - Length (m) 0.288m
Packaging 2 - Qty 10
Packaging 2 - Type carton
Packaging 2 - Volume (m³) 0.0087
Packaging 2 - Weight (kg) 2.15445kg
Packaging 2 - Width (m) 0.178m
ETIM 6.0 EC000879
ETIM 7.0 Key EC000879
