25/07/2021

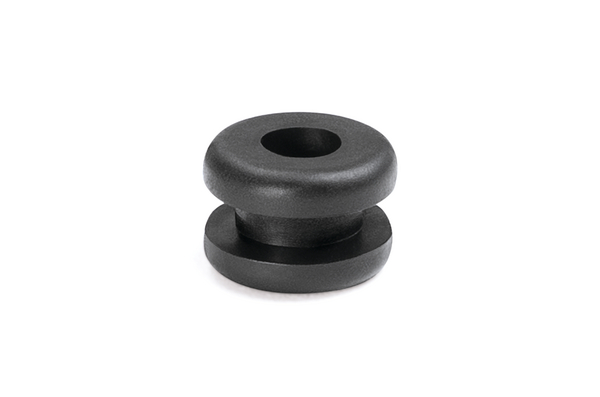

For punched or drilled metal sheets : HV1201B

Edge protection grommets blackArticle number: 633-02020

HV1201 to HV1218

Features

  • Protects cables from sharp edges
  • Provides additional strain relief
  • Flexible and easy to apply
  • High resistance to chemicals and environmental influences

Certifications & Approvals

Application

Edge protection grommets are used wherever cable and wires are routed through apertures. HellermannTyton grommets offer excellent mechanical protection.

Cable ∅ max 5.0mm
Cable ∅ min 4.0mm
Colour Black (BK)
Pack Cont. 2000pcs.
Package Quantity per pcs.
PART DESCRIPTION HV1201B-PVC-FR-BK
Product Family Edge protection grommets
Product Group For punched or drilled metal sheets
Short Description Edge protection grommets black
Variant Closed

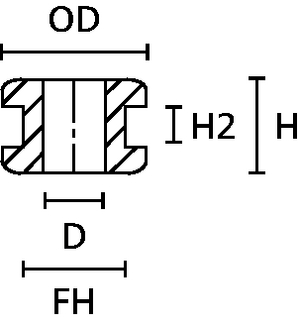

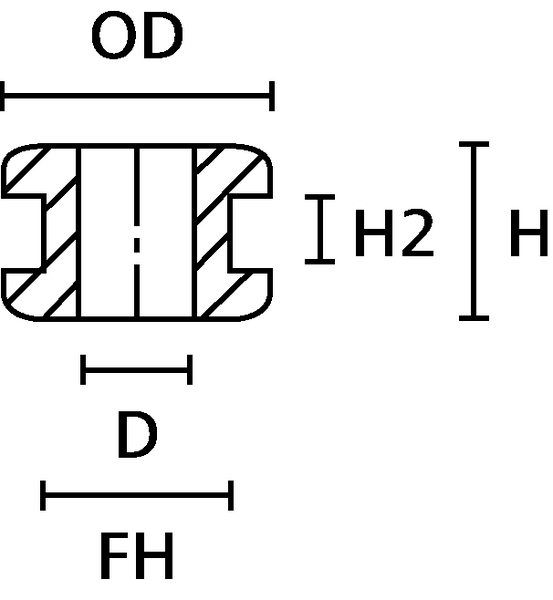

Bundle ∅ max. 9.5mm
Diameter (D) 4.0mm
for Hole ∅ (FH) 6.4 mm
Height (H) 6.5mm
Height (H2) 2.5mm
Outside Ø (OD) 9.5mm
Shore Hardness A 55±5
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V0
Hazardous good No
Material Polyvinylchloride, flame retardant (PVC-FR)
Nato number 5325-12-181-0237
Operating Temperature - °C -30 °C to +60 °C
Specifications
Waterproof No
GTIN-13 / EAN 4031026186252
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.2m
Packaging 1 - Qty 2000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0024
Packaging 1 - Weight (kg) 0.600001kg
Packaging 1 - Width (m) 0.3m
ETIM 6.0 EC000879
ETIM 7.0 Key EC000879
