08/11/2024

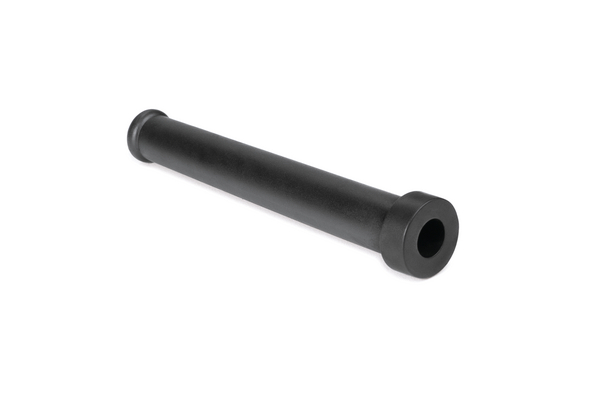

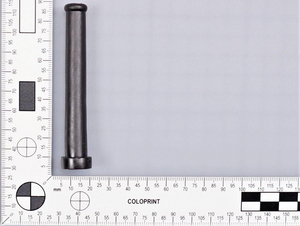

Cable grommet, ∅11.5 mm, black, 200pcs.
Art.-No. 632-01070 | HV2107-PVC-FR-BK Details

  • Routes cables free of kinks and breakage
  • Provides strain relief
  • Flexible and easy to apply
  • High resistance to chemicals und environmental influences
Application Bend protection grommets are typically used to protect cables and wires at the apertures in casings.
Cable ∅ max 9.0mm
Cable ∅ min 8.0mm
Colour Black (BK)
Material Polyvinylchloride, flame retardant (PVC-FR)
PART DESCRIPTION HV2107-PVC-FR-BK

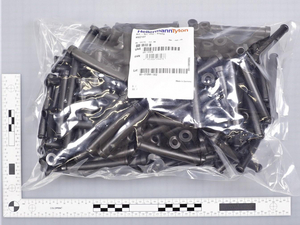

Pack Cont. 200pcs.
Package Content packed in pcs.
Product Family Bend protection grommets
Product Group For strain relief
Short Description Bend protection grommets black, outside diameter: 16.0mm, inside diameter: 8.0mm
Type HV2107
Variant Open

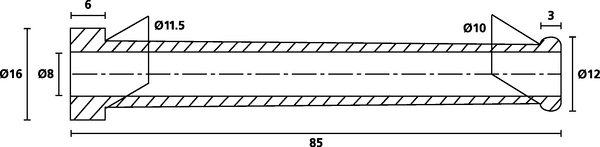

Diameter (D) 8.0mm
Length (L) 85.0mm
Outside Ø (OD) 16.0mm
Outside ∅ (OD2) 12.0mm
Shore Hardness A 55±5
Weight/Unit 0.005139kg
for Hole ∅ (FH) 11.5 mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V0
Hazardous Goods No
Nato number 5975-12-172-9968
Operating Temperature -30 °C to +60 °C
ROHS compliant Yes
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026186078
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 0.385m
Packaging 1 - Qty 200
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.01463
Packaging 1 - Weight (kg) 1.0558kg
Packaging 1 - Width (m) 0.38m
ETIM 7.0 Key EC000879
ETIM 8.0 Key EC000879
ETIM 9.0 Key EC000879
