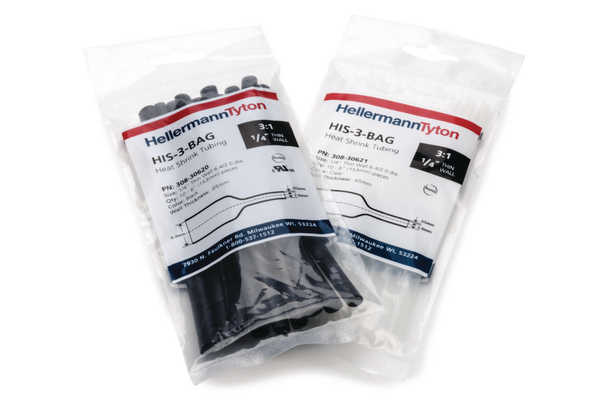

Heat Shrink Tubing
Art.-No. 308-30420
| HIS-3-BAG 4.5/1.5 BK-PO-X-BK
Copied
- Thin wall, flexible 3 to 1 shrink ratio material accommodates a wide range of component shapes and diameters.
- Meets UL224 VW-1 specifications, making it ideal for high heat applications (excludes clear tubing).
- Polyolefin material provides excellent insulation and mechanical strength with good resistance to solvents, oils and fuels.
- Available in bulk reels, sticks and convenience bags (HIS-3 bags), for small to large volume applications.
More products in this product group:
| Application | HIS-3 BAG tubings are useable for insulation and protection of cables and connectors |
| Behaviour At Low Temperature | not cracking |
| Behaviour at Heat Shock | not fluid, not dripping, not cracking |
| Behaviour at low Temperature test method | UL 224 |
| Brand Family | HIS-Series |
| Color | Black (BK) |
| Description | TFN31 series heat shrink tubing features a flexible, thin wall and highly flame retardant polyolefin material with a higher operating temperature range than general-use heat shrink tubing. and offers good resistance to solvents, oils and fuels. The 3 to 1 shrink ratio accommodates a variety of component shapes and sizes. TFN31 tubing is available in bulk reels, sticks and convenience bags (HIS-3 bags), for projects of all sizes. |
| Elongation At Heat Aging | 400% |
| Heat Aging Test | 168h/175°C |
| Heat Aging test method | UL 224 |
| Heat Shock Test | 4h/250°C |
| Minimum Tensile Strength At Heat Aging | 13MPa |
| PART DESCRIPTION | HIS-3-BAG 4.5/1.5 BK-PO-X-BK |
| Packaging Type | bag |
| Part No. | 308-30420 |
| Product family | Insulation |
| Short Desc. | Heat Shrink Tubing, HIS-3-Bag, 3:1 Shrink Ratio, 3/16", 4.8/1.5 Dia, PO, Black, 10/pkg |
| Type | HIS-3-BAG 4.5/1.5 BK |
|
|
|
| For Object Outside Diameter | 2.16-4.14 mm |
| Length (metric) | 200mm |
| Length 3 (imperial) | 6.0" |
| Length 3 (metric) | 152.4mm |
| Longitudinal Change After Shrinkage | +/-5% |
| Nominal Diameter (imperial) | 0.19" |
| Nominal Diameter (metric) | 4.5mm |
| Printable | No |
| Recovered Diameter (imperial) | 0.059" |
| Recovered Diameter (metric) | 1.5mm |
| Shrink Ratio | 3:1 |
| Supplied Diameter (imperial) | 0.188" |
| Supplied Diameter (metric) | 4.8mm |
| Trade Size | 3/16 " |
| Volume Resistance | 10¹⁴ Ω cm |
| Wall Thickness (imperial) | .024" |
| Wall Thickness (metric) | 0.60mm |
Download
| CSA Certified | No |
| Dielectric Strength | 32kV/mm |
| Dielectric Strength test method | IEC 60243 |
| Elongation at break (min.) | 800% |
| Elongation at break test method | ASTM D2671 |
| Flammability | UL 224 VW-1 |
| Material | PO-X |
| Material | Polyolefin, cross-linked (PO-X) |
| Min. Shrink Temperature | +212 °F (+100 °C) |
| Operating Temperature | -67°F to +275°F (-55°C to +135°C) |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| Test Method Tensile Strength | ASTM D2671 |
| UL File Number [Logo] | E125182 [cRUus] |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US) | Yes |
| Volume Resistance test method | UL 224 |
