Heat shrinkable tubing 3:1 on a reel : HIS-A-3/1

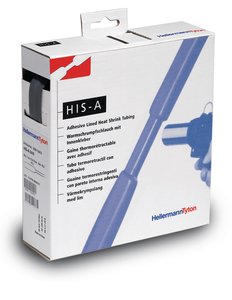

Heat Shrinkable Tubing with Adhesive Liner 3:1 on a Reel 3/1 blackArticle number: 308-10300

Features

  • Adhesive lined heat shrink tubing
  • Inner wall melts when heated and is forced into gaps
  • Adhesive forms seal against moisture as tubing cools
  • Protects components
  • Available in black and transparent
  • 6 sizes for wide range of applications

Certifications & Approvals

Application

HIS-A forms a seal against moisture and protect against corrosion and mechanical abrasion.

Application Tool H6100
Behaviour at Heat Shock not cracking, not fluid, not dripping
Behaviour At Low Temperature not cracking
Behaviour at low Temperature test method UL 224
Colour Black (BK)
Elongation At Heat Aging 200%
Heat Aging Test 168h/158°C
Heat Aging test method UL 224
Heat Shock Test 4h/250°C
Heat shock test test method UL 224
Minimum Tensile Strength At Heat Aging 12MPa
Pack Cont. 10m
Package Quantity per pcs.
PART DESCRIPTION HIS-A-3/1-PO-X-BK
Printable (Yes/No) Yes
Product Family HIS-A - with adhesive liner
Product Group Heat shrinkable tubing 3:1 on a reel
Short Description Heat Shrinkable Tubing with Adhesive Liner 3:1 on a Reel 3/1 black
Shrink Ratio 3:1
Variant Thin-Wall
With inner glue (Yes/No) Yes
Length (L) 10m
Longitudinal Change After Shrinkage -10 % max.
Recov. ∅ d max. 1.0mm
Supplied ∅ D min. 3.0mm
Tube Shape Flat
Wall (WT) 1.00mm
Wire Size Range (mm²) 1.4-2.6mm²
Adhesive Hot melt adhesive
CSA Certified Yes
Dielectric Strength 24 kV/mm
Dielectric Strength test method IEC 60243
Elongation at break 600
Elongation at break test method ASTM D2671
ELV compliant (Article 4 - 2) YES
Flammability self-extinguishing (except transparent), UL 224 VW-1 (except transparent)
Hazardous good No
Insulation Class A (VDE 0530)
Material Polyolefin, cross-linked (PO-X)
Min. Shrink Temperature - °C +100 °C
Operating Temperature - °C -55 °C to +125 °C
Softening Point Adhesive +85 °C
Specifications
Specifications ANSI/UL 224, C22.2 no. 198.1-06, CSA-C22.1, CSA-C22.2 No.198.1
Tensile Strength 14MPa
Tensile Strength test method UL 224
Test Method Tensile Strength ASTM D2671
UL OCD link Link Link
UL-File Number E143529
Volume Resistance 10¹⁴ Ω cm
GTIN-13 / EAN 4031026218649
Packaging 1 - Height (m) 0.048m
Packaging 1 - Length (m) 0.164m
Packaging 1 - Qty 1
Packaging 1 - Type carton
Packaging 1 - Volume (m³) 0.00127
Packaging 1 - Weight (kg) 0.2177kg
Packaging 1 - Width (m) 0.161m
Packaging 3 - Height (m) 0.38m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 40
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0738
Packaging 3 - Weight (kg) 9.208kg
Packaging 3 - Width (m) 0.347m
Packaging 4 - Height (m) 0.904m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 320
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.868
Packaging 4 - Weight (kg) 94.664kg
Packaging 4 - Width (m) 0.8m
Reel Length 10.0m
ETIM 7.0 Key EC000217
