23/02/2026

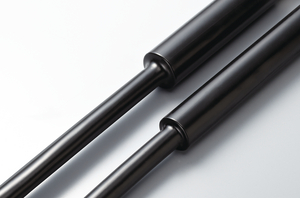

Heat shrinkable tubing 2:1
Art.-No. 302-00091 | TC26 40. 0 1m length-PO-X-BK

Copied

    • TC26 is a general purpose, polyolefin tubing with good resistance to common fluids and solvents.
    • This flexible, 2:1 shrink ration tubing has an excellent physical and electrical performance.
    • The low shrink temperature and the mechanical strength make this tubing being widely used in the electrical, electronics and automotive industry.
    Add to watchlist
    Downloads
    Application The bright shiny surface of TC26 ia an attractive covering for many automotive and customer-goods applications. Clear version offers excetional clarity to protect marked surfaces.
    Color Black (BK)
    PART DESCRIPTION TC26 40. 0 1m length-PO-X-BK
    Packaging Type lengths
    Part No. 302-00091
    Product family Insulation
    Type TC26 40. 0 1m length
    For Object Outside Diameter 24.4-37.6 mm
    Length (metric) 1m
    Recovered Diameter (metric) 20.00mm
    Shrink Ratio 2:1
    Supplied Diameter (metric) 42.0mm
    Volume Resistance 10¹⁴ Ω cm
    Dielectric Strength 25kV/mm
    Halogen Free No
    Material PO-X
    Material Polyolefin, cross-linked (PO-X)
    Min. Shrink Temperature +194 °F (+90 °C)
    Operating Temperature -67°F to +221°F (-55°C to +105°C)
    ROHS compliant Yes
    UL Listed (US and Canada) No
    Pkg. Qty. 1EA
    Pkg. Qty. 1
