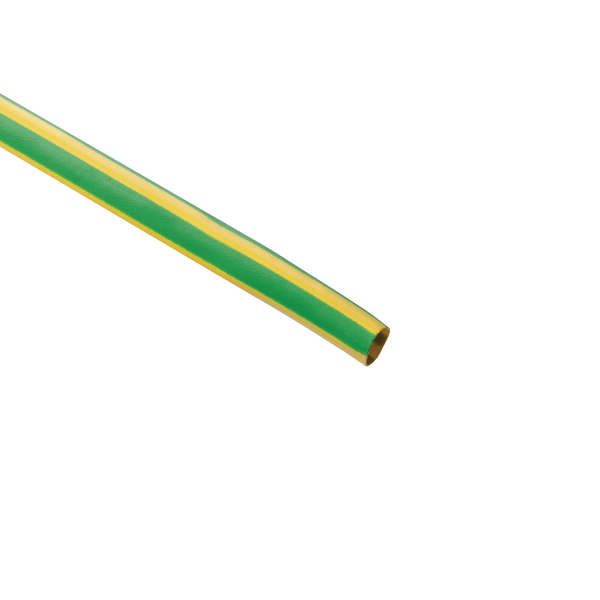

Heat Shrinkable Tubing 2:1 length 1 m Thin Wall 38.1/19.1 green/yellow
Art.-No. 319-03807
| TREDUX-38.1/19.1-PO-X-GNYE
Copied
- TREDUX is a thin wall, flexible tubing with a shrink ratio of 3:1 and is made from cross-linked polyolefin.
- Available in 1 m lengths and 9 sizes from 1.5 mm to 101.6 mm.
- All 1 m lengths are delivered in a display carto and all tubings can be sold in single 1 meter length or entire box.
More products in this product group:
| Application | TREDUX thin wall heat shrink tubing is used for general electrical insulation and mechanical protection of cables and wires. |
| Behaviour at Heat Shock | not fluid, not dripping, not cracking |
| Behaviour at low Temperature test method | UL 224 |
| Brand Family | TREDUX |
| Color | Green-Yellow (GNYE) |
| Elongation At Heat Aging | 400% |
| Heat Aging Test | 168h/175°C |
| Heat Shock Test | 4h/250°C |
| Heat shock test test method | UL 224 |
| Minimum Tensile Strength At Heat Aging | 11MPa |
| PART DESCRIPTION | TREDUX-38.1/19.1-PO-X-GNYE |
| Packaging Type | pcs. |
| Part No. | 319-03807 |
| Product family | Insulation |
| Short Desc. | Tredux is a thin wall, 3:1 shrink ratio, heat shrink in one meter sticks (3.28 ft). UL 224 VW-1. |
| Type | TREDUX-38.1/19.1 |
|
|
|
| For Object Outside Diameter | 22.9-34.3 mm |
| Length (imperial) | 39.37" |
| Length (metric) | 1.0m |
| Longitudinal Change After Shrinkage | +/-5% |
| Printable | No |
| Recovered Diameter (imperial) | 0.75" |
| Recovered Diameter (metric) | 19.1mm |
| Shrink Ratio | 2:1 |
| Size (imperial) | 1" |
| Supplied Diameter (imperial) | 1.5" |
| Supplied Diameter (metric) | 38.1mm |
| Voltage range | 600 V |
| Volume Resistance | 10¹⁴ Ω cm |
| Wall Thickness (metric) | 1.02mm |
Download
| CSA Certified | Yes |
| Copper corrosion | tested according to UL 224 |
| Dielectric Strength | 20kV/mm |
| Dielectric Strength test method | IEC 60243 |
| Elongation at break (min.) | 6% |
| Elongation at break test method | ASTM D2671 |
| Flammability | UL 224 VW-1 |
| Material | PO-X |
| Material | Polyolefin, cross-linked (PO-X) |
| Min. Shrink Temperature | +158 °F (+70 °C) |
| Operating Temperature | -67°F to +275°F (-55°C to +135°C) |
| REACH Conformity | No |
| ROHS compliant | Yes |
| Test Method Tensile Strength | ASTM D2671 |
| UL File Number [Logo] | E143529 [cRUus] |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US) | Yes |
| Volume Resistance test method | IEC 93 |
