25/04/2024

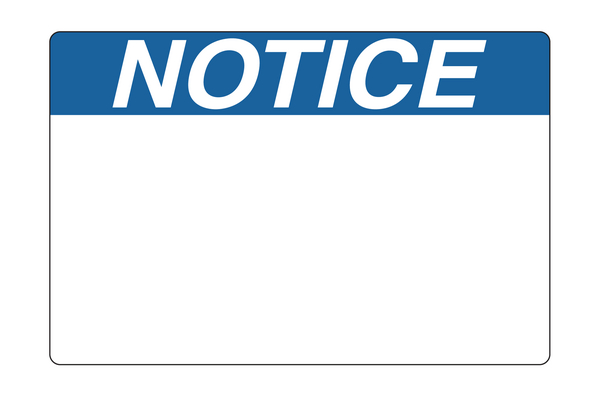

3X2NOTICE-336/926-BU : 3X2NOTICE
Art.-No. 596-00426 | 3X2NOTICE-336/926-BU |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Blue (BU)
    Colour of Print White (WH)
    Material Type 336/926, Polyester, UV-stabilised, clear polyester laminate (336/926)
    Pack Cont. 250pcs.
    Package Content packed in roll
    PART DESCRIPTION 3X2NOTICE-336/926-BU
    H printable 50.8mm
    Height (H) 50.8mm
    HR 3.0"
    HR 76.2mm
    Print Method thermal transfer print
    Thickness (T) 64.0µm
    VR 2.125"
    VR 79.37mm
    Width (W) 76.2mm
    Width of LIner (WL) 3.2"
    Width of Liner (WL) 81.28mm
    Adhesive Acrylic
    Adhesive Operating Temperature -40 °C to +150 °C
    CE Certification No
    CSA Certified No
    Curing Temperature +10 °C
    Halogen-free No
    Operating Temperature -40 °C to +150 °C
    Specifications
    Specifications NEC2011, NEC2014, NEC2017, NEC2020
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL-File Number MH16736, MH66956
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026669465
    Labels per Column 1
    Labels per Row 1
    Packaging 1 - Weight (kg) 0.521kg
    ETIM 7.0 Key EC001530
    ETIM 8.0 Key EC001530
    ETIM 9.0 Key EC001530
    UNSPSC Key 55121606
