28/03/2024

CBACKFED-443/281-YE : CBACKFED
Art.-No. 596-00587 | CBACKFED-443/281-YE Details

Application For use on panel near back feed breakers
Application Method Labels are applied by hand to PV installations where durable UV resistant marking is required.
Colour Yellow (YE)
Colour of Print Black (BK)
Material Type 443/281, UV-stabilised, flexible white vinyl with clear polyester laminate (443/281)
Pack Cont. 50pcs.
Package Content packed in roll
PART DESCRIPTION CBACKFED-443/281-YE

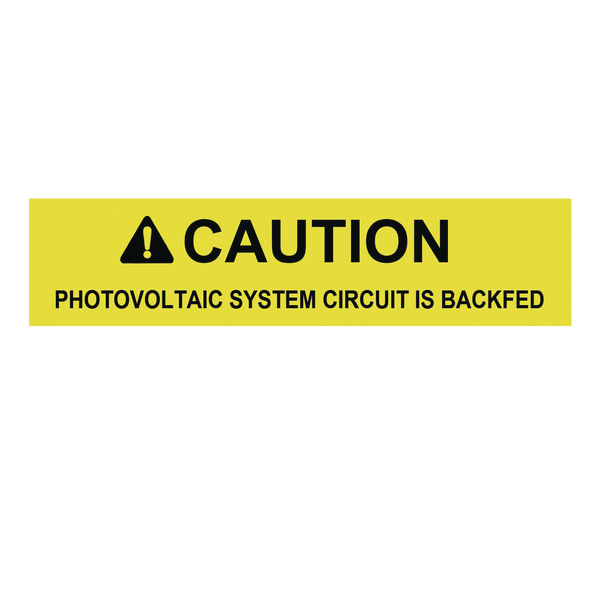

Technical Description 4.12" X .75" Black text on an Yellow background that reads as: "CAUTION - PHOTOVOLTAIC SYSTEM CIRCUIT IS BACKFED." - 50 per roll.
Height (H) 19.05mm
Thickness (T) 64.0µm
Width (W) 104.6mm
Adhesive Acrylic
Adhesive Operating Temperature -40 °C to +79 °C
CE Certification No
CSA Certified No
Curing Temperature +10 °C
Halogen-free No
Operating Temperature -40 °C to +79 °C
Specifications
Specifications NEC2014, NEC2017, NEC2020, NEC2023, UL 969
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number MH11410
UV-Stabilised (Yes/No) Yes
Country of Origin US
GTIN-13 / EAN 4031026468297
Labels per Column 1
Labels per Row 1
Packaging 1 - Weight (kg) 0.521kg
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
UNSPSC Key 55121606
