CSCIRLBL10-505/281-YE : CSCIRLBL10

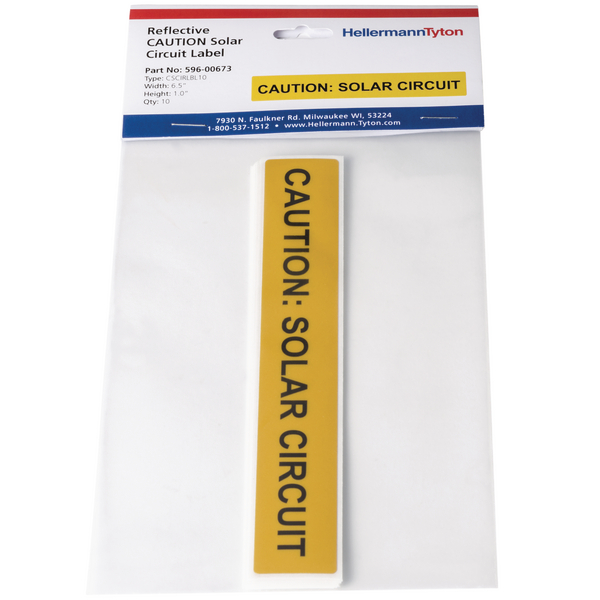

Art.-No. 596-00673 | CSCIRLBL10-505/281-YE Details

Colour Yellow (YE)
Colour of Print Black (BK)
Material Type 505/281, UV-stabilised, reflective vinyl with clear polyester laminate (505/281)
Pack Cont. 10pcs.
Package Content packed in pack
PART DESCRIPTION CSCIRLBL10-505/281-YE
Height (H) 25.40mm
Thickness (T) 64.0µm
Width (W) 165.1mm
Adhesive Acrylic
Adhesive Operating Temperature -40 °C to +79 °C
CE Certification No
CSA Certified No
Curing Temperature +10 °C
Halogen-free No
Operating Temperature -40 °C to +79 °C
Specifications
Specifications NEC2011, NEC2014
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number MH11410
UV-Stabilised (Yes/No) Yes
Country of Origin US
GTIN-13 / EAN 4031026478319
Labels per Column 1
Labels per Row 1
Packaging 1 - Weight (kg) 0.521kg
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
UNSPSC Key 20150126
