CSESC-505/281-YE : CSESC

Article number: 596-00613

Certifications & Approvals

Application

for use on Main Service Disconnect

Colour Yellow (YE)
Colour of Print Black (BK)
Features and Benefits Eliminate the need to have custom and expensive engraved plates ordered for each installation. Carry your own labels for use, on demand, at each installation while being assured of high performance, long lasting, outdoor durability while meeting all applicable local labeling requirements.
Pack Cont. 50pcs.
Package Quantity per roll
PART DESCRIPTION CSESC-505/281-YE
Short Description Solar Label, Caution - Solar Electric System Connected Reflective Label, 6.5" X 1.0", Yellow, 50/PK

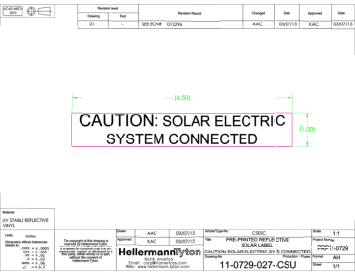

Technical Description 6.5" X 1" Black text on a yellow background that reads as: "CAUTION - SOLAR ELECTRIC SYSTEM CONNECTED" in 3/8" tall characters using reflective inks. 50 per pkg.
Height (H) 25.4mm
Thickness (T) 64.0µm
Width (W) 165.1mm
Adhesive Acrylic
Adhesive Operating Temperature -40 °C to +150 °C
CSA Certified No
Curing Temperature +10 °C
Halogenfree No
Material Type 505/281, UV stable reflective vinyl with clear polyester laminate (505/281)
Operating Temperature - °C -40 °C to +79 °C
Specifications
Specifications ANSI Standard Z535.4, IFC 2012, NEC2011, NEC2014, UL 969
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number MH16736
EAN / GTIN 4031026468457
Labels per Column 1
Labels per Row 1
Packaging 1 - Weight (kg) 0.104kg
Weight 0.23lbs
Weight 0.104kg
ETIM 6.0 EC001530
ETIM 7.0 Key EC001530
UNSPSC Key 55121606
