Printable Solar Installation Labels DCDISCT

Article number: 596-00238

Certifications & Approvals

Application

For use on the DC Disconnect. Variable print can be added using a sharpie or thermal transfer printer.

Colour Red (RD)
Colour of Print White (WH)
Features and Benefits Eliminate the need to have custom and expensive engraved plates ordered for each installation. Carry your own labels for use, on demand, at each installation while being assured of high performance, long lasting, outdoor durability while meeting all applicable local labeling requirements.
Pack Cont. 50
Package Quantity per roll
PART DESCRIPTION DCDISCT-840/926-RD
Product Group Printable Solar Installation Labels

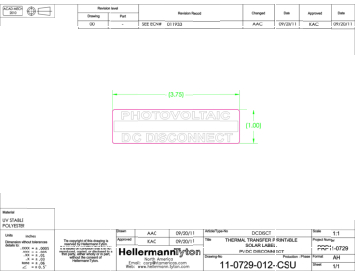

Short Description Solar Label, PV DC Disconnect printable Solar Label, 3.75" X 1.0", Red, 50/RL
Short Description 3.75" X 1" PHOTOVOLTAIC DC DISCONNECT - 50/RL

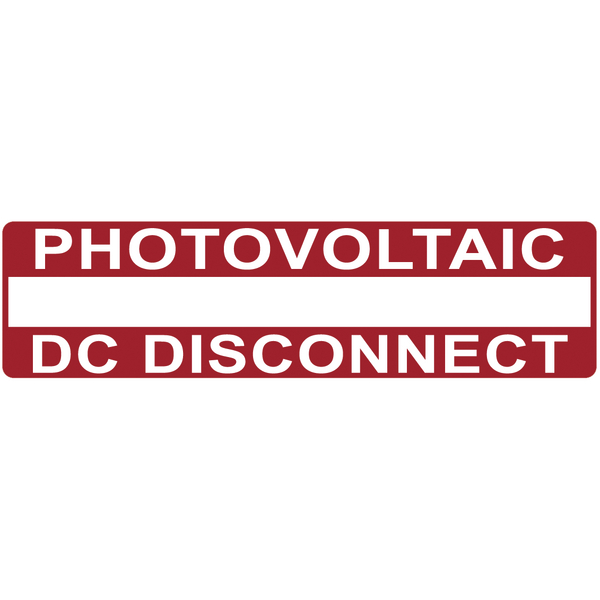

Technical Description 3.75" X 1" White text on red background that reads as: "PHOTOVOLTAIC DC DISCONNECT." - 50 per roll. Label is also printable with variable information by the installer.
Height (H) 25.4mm
Thickness (T) 64.0µm
Width (W) 92.25mm
Width of Liner (WL) 98.29mm
Width of LIner (WL) 3.87"
Adhesive Acrylic
Adhesive Operating Temperature -40 °C to +150 °C
CSA Certified No
Curing Temperature +10 °C
Halogenfree No
Material Type 840/926, Polyester (PET), white (WH), UV stable, clear Polyester laminate
Operating Temperature - °C -40 °C to +150 °C
Recommended Ribbon Type TT822OUT
Specifications
Specifications CSA 66956, IFC 2012, NEC2014, NEC2017, NEC2020, UL 969
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number MH16736
Labels per Column 1
Labels per Row 1
Packaging 1 - Weight (kg) 0.521kg
Weight 1.14lbs
Weight 0.521kg
ETIM 6.0 EC001530
ETIM 7.0 Key EC001530
UNSPSC Key 55121606
