28/03/2024

IOCOD-443/281-OG : IOCOD
Art.-No. 596-00589 | IOCOD-443/281-OG Details

Application For use on panels
Application Method Labels are applied by hand to PV installations where durable UV resistant marking is required.
Colour Orange (OG)
Colour of Print Black (BK)
Material Type 443/281, UV-stabilised, flexible white vinyl with clear polyester laminate (443/281)
Pack Cont. 50pcs.
Package Content packed in roll
PART DESCRIPTION IOCOD-443/281-OG

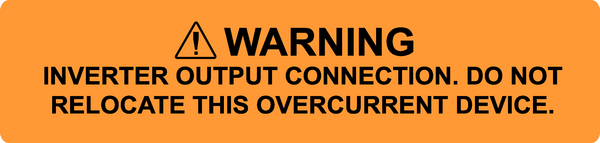

Technical Description 4.12" X .75" Black text on an Orange/White background that reads as: "WARNING - INVERTER OUTPUT CONNECTION. DO NOT RELOCATE THIS OVERCURRENT DEVICE. - 50 per roll.
Height (H) 19.05mm
Thickness (T) 64.0µm
Width (W) 104.6mm
Adhesive Acrylic
Adhesive Operating Temperature -40 °C to +79 °C
CE Certification No
CSA Certified No
Curing Temperature +10 °C
Halogen-free No
Operating Temperature -40 °C to +79 °C
Specifications
Specifications NEC2014, UL 969
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number MH11410
UV-Stabilised (Yes/No) Yes
Country of Origin US
GTIN-13 / EAN 4031026468310
Labels per Column 1
Labels per Row 1
Packaging 1 - Weight (kg) 0.521kg
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
UNSPSC Key 55121606
