Pre-Printed reflective solar installation labels : MPVACDIS

5.5" X 1.75" MAIN PV SYSTEM AC DISCONNECT - 50/PK, Article number: 596-00255

Certifications & Approvals

Application

For use on Main PV AC Disconnect

Colour Red (RD)
Colour of Print White (WH)
Features and Benefits Eliminate the need to have custom and expensive engraved plates ordered for each installation. Carry your own labels for use, on demand, at each installation while being assured of high performance, long lasting, outdoor durability while meeting all applicable local labeling requirements.
Pack Cont. 50
Package Quantity per roll
PART DESCRIPTION MPVACDIS-242/552-RD
Product Group Pre-Printed reflective solar installation labels
Short Description Solar Label, Main PV System Disconnect Reflective Label, 5.5" X 1.75", Red, 50/PK
Short Description 5.5" X 1.75" MAIN PV SYSTEM AC DISCONNECT - 50/PK

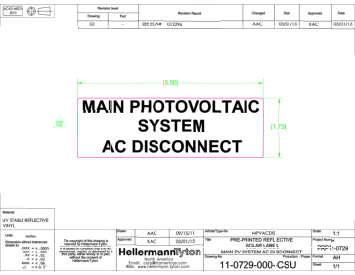

Technical Description 5.5" X 1.75" White text on red background that reads as: "MAIN PV SYSTEM AC DISCONNECT." in 3/8" tall characters. 50 per pkg.
Height (H) 44.40mm
Length (L) 139.7mm
Thickness (T) 64.0µm
Width (W) 139.7mm
Adhesive Acrylic
Adhesive Operating Temperature -40 °C to +150 °C
CSA Certified No
Curing Temperature +10 °C
Halogenfree No
Material Type 242/552, UV Stable Reflective Vinyl w/Acrylic Laminate
Operating Temperature - °C -40 °C to +79 °C
Specifications
Specifications IFC 2012, NEC2011, NEC2017, UL 969
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number MH16736
Labels per Column 1
Labels per Row 1
Packaging 1 - Weight (kg) 0.521kg
Weight 1.14lbs
Weight 0.521kg
ETIM 6.0 EC001530
ETIM 7.0 Key EC001530
UNSPSC Key 55121606
