Label, white, thermal transfer print, 7.00x18.00mm, 5000pcs.
Art.-No. 596-12126
| TAG18-07TD1-1210-WH
|
Copied
This product is not available anymore.
Alternative product available
- Suited to the slightly rough surfaces of Q-tags, IT and IMP plates
- Adheres to rounded surfaces
- Excellent print performance using TT822OUT ribbon
- Print with TT4030, TT431 for best results
- Easy label design with TagPrint Pro
More products in this product group:
| Application |

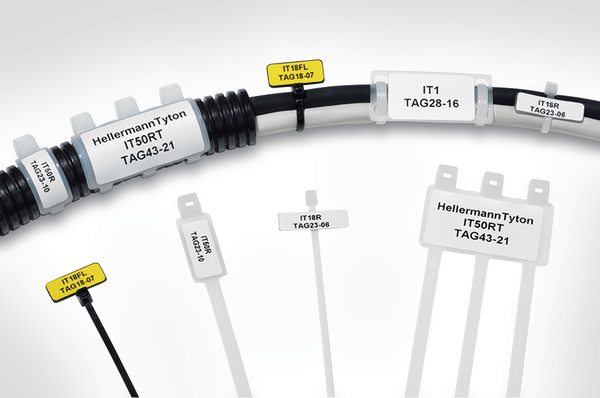

These labels are specially tailored to the sizes used in the IT marking tie and IMP as well as Q-tag range. The flexible material sticks to the marking tie or tag, even on rounded surfaces. Using unique numbering, graphics, or barcodes the labels give excellent asset identification possibilities. This solution produces professional marking of tubes, pipes, cables and other parts. For problem-free printing, we recommend TagPrint Pro software, TT4030 and TT430 printers with TT822OUT ribbons. |
| Application Method | The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance. |
| Chem. Material Properties | Resistant to water, alcohol, most oils, greases, fuel, aliphatic solvents, weak acids, salts and alkalis. |
| Colour | White (WH) |
| Colour Marking Field | White gloss (GSWH) |
| For Size | IT18FL |
| Material | Type 1210, Vinyl, white gloss (1210) |
| Mech. material properties | Permanent adhesive, suitable for critical surfaces |
| PART DESCRIPTION | TAG18-07TD1-1210-WH |
| Package Content | 5000pcs. |
| Package Content packed in | reel |
| Print Method | thermal transfer print |
| Product Family | Helatag 1210 |
| Product Group | Labels for IT ties, IMP plates and Q-tags, thermal transfer |
| Self adhesive (Yes/No) | Yes |
| Short Description | Adhesive Label for Plates and Tags for Thermal Transfer Printing 18x7mm white |
| Type | TAG18-07TD1 |
| Weight/Unit | 0.26kg |
| Adhesive | Acrylic |
| Curing Temperature | from +5 °C |
| ELV compliant (Article 4 - 2) | YES |
| Halogen-free | No |
| Hazardous Goods | No |
| Initial tack | 11N/25 mm |
| Initial tack | FINAT FTM 9 |
| Operating Temperature | -20 °C to +80 °C |
| Peel strength | 250 N/m |
| Peel strength test method | FINAT FTM 2 |
| Pre-Printed | No |
| ROHS compliant | Yes |
| Recommended Ribbon Type | TT822OUT |
| Shelf Life | Minimum 1 year upon receipt / maximal 2 years after production date. |
| Specifications |
|
| Country of Origin | DE |
| Customs Number | 39199080 |
| GTIN-13 / EAN | 4031026293950 |
| Labels per Row | 1pc. |
| Packaging 1 - Height (m) | 0.032m |
| Packaging 1 - Length (m) | 0.165m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00081312m³ |
| Packaging 1 - Weight (kg) | 0.26kg |
| Packaging 1 - Width (m) | 0.154m |
| Storage Temperature | +21 °C |
| Storage conditions | 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness. |
