Label, white, thermal transfer print, 9.53x25.40mm, 7500pcs.
Art.-No. 596-34823 | TAG34TD3-823-WH

Copied

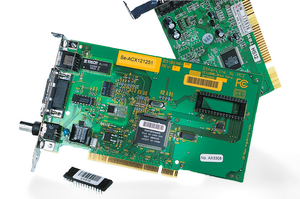

Secure identification of component parts and circuit boards with Helatag.

    • These labels are specially designed for identification of component parts and circuit boards.These labels are designed to withstand high temperature soldering processes and cleaning cycles and can therefore used for pre-process electronic component labeling.
    • For problem-free printing, we recommend Tagprint PRO software, TTM430, TTM460 or TT230SM printers with TT822OUT and TTDTHOUT style ribbons.
    Add to watchlist
    Downloads
    Application Helatag 823 labels have been designed to fit all areas when it comes to marking components on PCBs. The specially formulated adhesive labels give the highest quality print clarity when printed on thermal transfer printers. Designing and printing labels is simple and users can quickly print out professional labels in a matter of moments when using TagPrint Pro labelling software.
    Brand Family HELATAG
    Color White gloss (GSWH)
    PART DESCRIPTION TAG34TD3-823-WH
    Packaging Type reel
    Part No. 596-34823
    Print Method thermal transfer print
    Type TAG34TD3

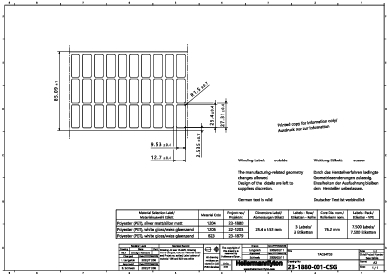

    Height (metric) 9.53mm
    Horizontal Repeat (metric) 27.31mm
    Liner Width (metric) 85.09mm
    Self adhesive (Yes/No) Yes
    Thickness (metric) 51.0µm
    Thickness of foil test method ASTM D3652-83
    Vertical Repeat (metric) 12.70mm
    Width (metric) 25.40mm
    Adhesive Acrylic
    Halogen Free Yes
    Initial tack 780g/cm²
    Initial tack ASTM D2979-71
    Material 823
    Material Type 823, Polyester, white (823)
    Minimum Application Temp. from +50°F (from +10°C)
    Operating Temperature -40°F to +302°F (-40°C to +150°C)
    Peel strength 550 N/m
    Peel strength test method PSTC 7
    Pre-Printed No
    REACH Conformity Yes
    ROHS compliant Yes
    Shear strength 25h
    Shear strength test method ASTM D3654
    Labels per Row 3Pieces
    Packaging 1 - Weight (kg) 0.525kg
    Pkg. Qty. 7500Pieces
    Storage conditions 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
